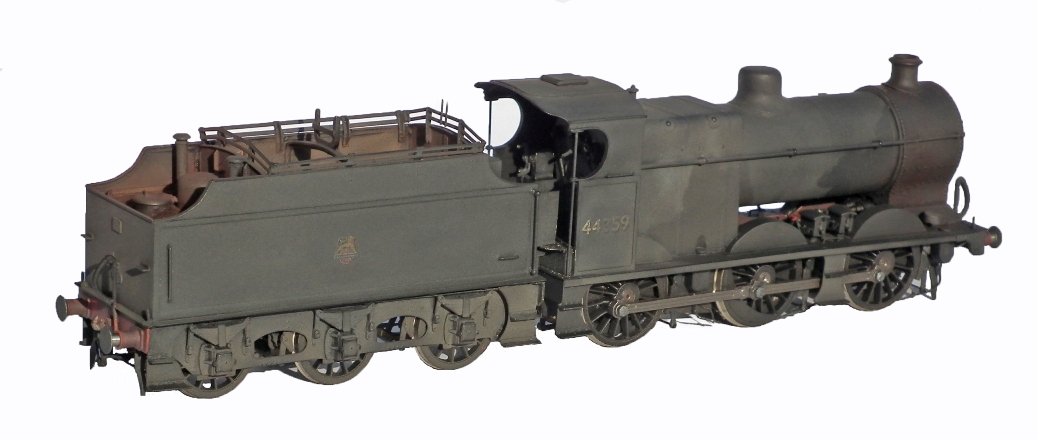

Our first kit featuring dummy "working" inside motion covers both Midland and LMS-built engines

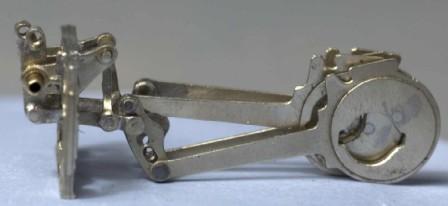

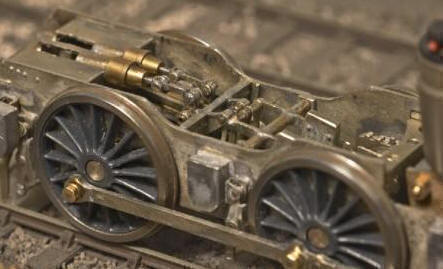

This kit features "working" inside motion which we have designed so that it can be built without having to split the drive axle and silver solder the cranks. It can be built fully operational or as an accurate static representation of the prototype motion.

THIS KIT IS BEING PRODUCED IN A STRICTLY LIMITED BATCH - ONLY A FEW REMAIN


We have significantly cut-back on the usual text-based instructions and replaced these by a series of annotated isometric step-by-step drawings. For those with access to a standard PC we have produced a CD-rom guide to both the model and the prototype. This not only includes the drawings but also has many close-up photographs of the model during each stage of construction, and of the prototype including the inside motion. To view the etch and download the Prototype Notes and Instructions click here.

Ref

Specification

Price

To complete

L107

Etched nickel silver frames, motion and brass superstructure

Resin cast boiler and  firebox

Lost wax, whitemetal and turned fittings

Sprung axleboxes

Covers both left and right hand drive versions

120

 Fowler 3500 gallon tender (most engines had the flush riveted type)

 Wheels

 5'3" 16 spoke 11" crank throw - Ultrascale or Alan Gibson G4863

 Motor  Designed for a Portescap 1616 but an alternative is a Mashima 1420
 Gearbox  High Level Load Hauler Plus either 80 or 60:1
