These pictures show the building of our pre-production model - click to zoom in

The new pull-rods and brake hangers

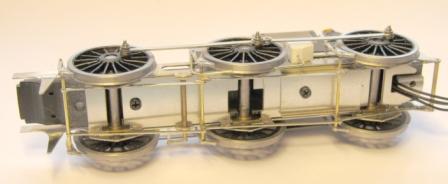

The new brake gear fitted to the chassis

The new sandboxes in position

The detailing etch is available separately (ref B217) at 10 for those not converting the loco to EM or P4, but who want to improve the detail. This has brake pull rods for the locomotive and for the tender, plus a pattern and material to enable the correct shape sandboxes to be fitted a dummy tank frame, replacement brake blocks, hangers and correct double rod brake rigging, hand brake lever mechanism, vacuum tanks and framework and replacement 00 guard irons.

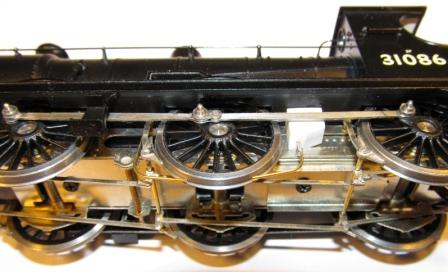

The replacement brake rodding fitted onto the original plastic locomotive keeper plate Download the instructions
