Click photos to enlarge



LSWR M7 No.54 in 1912 condition built to P4 standards by Martin Finney. Painted and lined by Chris Wesson

The model shows one of the B13 batch which featured combined front splasher and sandbox, long frames, long tanks with feed-water heaters fed by exhaust steam and Duplex pumps mounted between the driving and bogie wheels.

Download the instructions.







Ref

Specification

Price

To complete

L18

Etched nickel silver frames, motion and brass superstructure

Lost wax, whitemetal and turned fittings

Flexichas suspension

Non-working, ‘dummy’ inside motion

Designed by Martin Finney

£160

 Wheels

Driving: 5'6" dia. 18 spokes

Bogie: 3' 7" dia. 10 spokes

(Ultrascale, Alan Gibson, Markits)

 Motor/ Portescap RG4C (1616); alternative is Mashima 1024
 Gearbox High Level Load Hauler Plus.



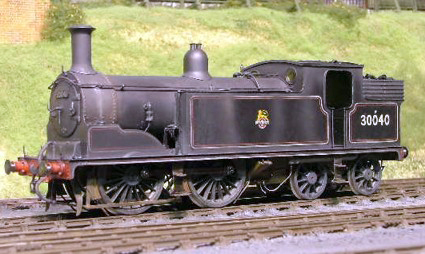

The locomotives which form the subject of this kit were the first design of Dugald Drummond for the LSWR. A total of 105 locomotives were built at Nine Elms and Eastleigh between 1897 and 1911. LSWR practice was to give each of the various build lots of their locomotives different classifications.

Thus the class known usually as M7 is actually made up of 15 batches: M7, V7, E9, B10, C10, G11, H11, B12, C12, X12, Y12, B13, D13, X14 and A15s.

The kit will build virtually all versions from circa 1900 to the last withdrawals in the 1960's. Includes long and short frame, feed water pumps
or injectors, two chimneys, all the various front sanding arrangements, three different smokeboxes, etc.


Variations/Modifications incorporated into the kit

Frame Length: The last 50 locomotives were built with a front overhang 15" longer than the earlier locomotives.

Chimney: The long frame locomotives were fitted with a narrower chimney.
Reverse:
The first 55 locomotives were built with lever reverse the remainder being built with steam reverse.

Splashers and Sandboxes: The first 45 locomotives were built with the leading sand box neatly combined with the wheel splasher. Drummond then experimented by putting the sandbox inside the smokebox with no external filler, necessitating the opening of the smoke box door to replenish the sand. These engines had the traditional shape of Drummond smokebox front with wing plates. The next ten engines, the first with the long frame, continued with the smokebox sandboxes which now had an external filler on the smokebox side. The smokebox sandboxes were quickly removed and replaced with boxes beneath the platform, most by mid-1907, the last in October 1915. When, much later, these locomotives required new smokeboxes, from May 1939 onwards, the attractive wing plates were unceremoniously removed. The last had its wings clipped during March 1946. Experiments complete and unsuccessful! the remaining engines were built with the original elegant arrangement.

Water Feed: The first 65 locomotives were fitted with conventional injectors. Drummond then built the remaining locomotives with his feed water heating system, the last 20 locomotives having boiler feed by means of two Duplex pumps. The feed water heaters were inside the side tanks and were supplied with exhaust steam through brass pipes which led from the smokebox to the front of the tanks. The tanks were clad with false plates, to prevent heat loss and blistering of the paintwork, which was extended forward at the front to cover the extra pipework, giving the appearance of having longer tanks. Whilst the system did give a slight improvement in both coal and water consumption it was expensive to maintain and this was one of Drummond's frills which his successor, Robert Urie, removed from 1922 onwards. All the cladding was removed including that around the front pipework revealing the standard length tanks.

Clackboxes: Numbers 242 to 256 and 667 to 676 were fitted with boiler side clackboxes. The remainder had their clackboxes sited on the bottom of the smokebox tube place where they were hidden by the splashers. Again Urie soon got to work placing the clackboxes conventionally on the boiler sides.

Front steps: The earliest locomotives were built without the footsteps between the coupled wheels.

Handrail knobs: When built the earliest locomotives had the forward handrail knob on the boiler some way from the smokebox. On later engines it was mounted further forward. During SR days an extra short handrail knob for the boiler handrail was fitted to the right side of the smokebox.

Tank Brackets: Again in SR days two brackets were fitted to the top of each tank. Towards the front the bracket tied the tank to the boiler and at the rear the bracket was a lifting eye.

Coal Rails: Two extra coal rails, to increase coal capacity, were added from circa 1912 onwards.  At the same time bars were fitted over the rear cab windows. Later still the coal rails were backed by metal sheeting to stop the loss of small coal.

Lamp brackets: The locomotives were built with Drummond's socket style brackets. The SR standardised on a design with the socket in the lamp. Many locomotives had the Drummond brackets adapted to accept the standard lamps but gradually the locomotives were fitted with new brackets of standard design.

Smokeboxes: When smokeboxes were renewed the flush riveting was often replaced by visible snap head rivets. On many of the locomotives to improve the sealing of the smokebox door four clamping 'dogs' were fitted to the lower rim of the door.

Handrails on front of tank: During SR days a vertical handrail was fitted to the front of each tank. When the air operated auto - train control system was fitted the right side handrail was moved outwards to give clearance for the operating cylinder.

Carriage heating pipes: From 1901 onwards the LSWR introduced steam carriage heating equipment. The steam pipe to the bufferbeam mounted connections ran behind the right side valence. In later years this was lowered slightly and carried by five brackets along the lower edge of the valence.

Couplings: Most of the engines appear in their early years, from photographs, to be running with a single, long coupling link although some carry three link couplings. Later the locomotives were equipped with screw couplings together with a hook to carry the coupling when it was not required.

Brake shoes: Two different patterns are included.

Cab doors: cab doors were fitted to the locomotives equipped with the air operated auto gear - see below.

Balance weights: Several different patterns of balance weight were used over the years. The last forty locomotives were built with Drummond's patent balanced crank axles which obviated the need for balance weights on the driving wheels.

Variations/Modifications not incorporated into the kit

Conical smokebox doors:
Numbers 242-244 only were built with conical smokebox doors. These were removed during 1904-5.

Ram pumps: The first twenty locomotives built with feed water heating were equipped with Ram pumps.

Auto train gear: 45 locomotives were fitted from 1912 with the South Western cable and pulley gear for working auto trains. It was removed between 1928 and 1936. From 1930 thirty one of the long frame locomotives received the more practical compressed air control system.
