| The kit features our now standard resin smokebox, boiler and firebox - provided with the three alternative combinations of smokebox/chimney. | |||
 |
 |
 |
|

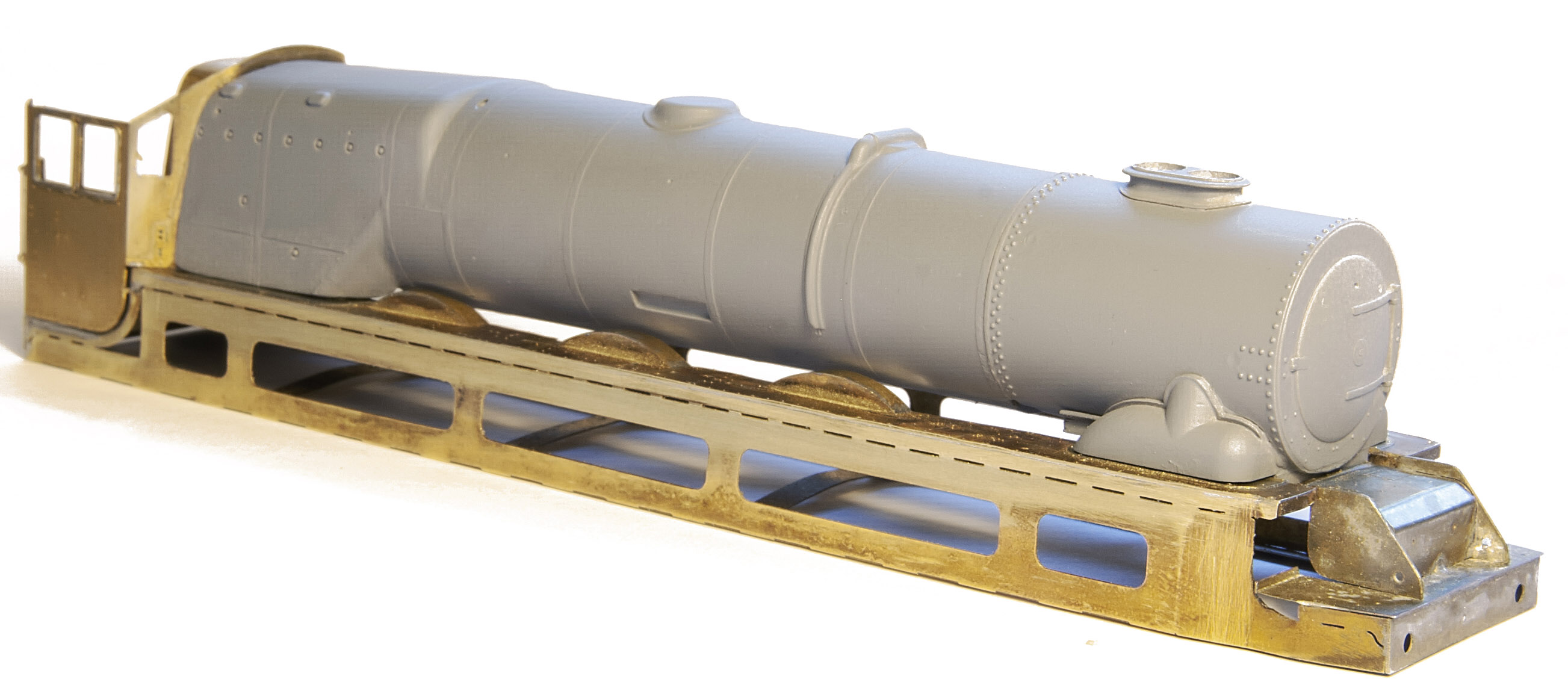

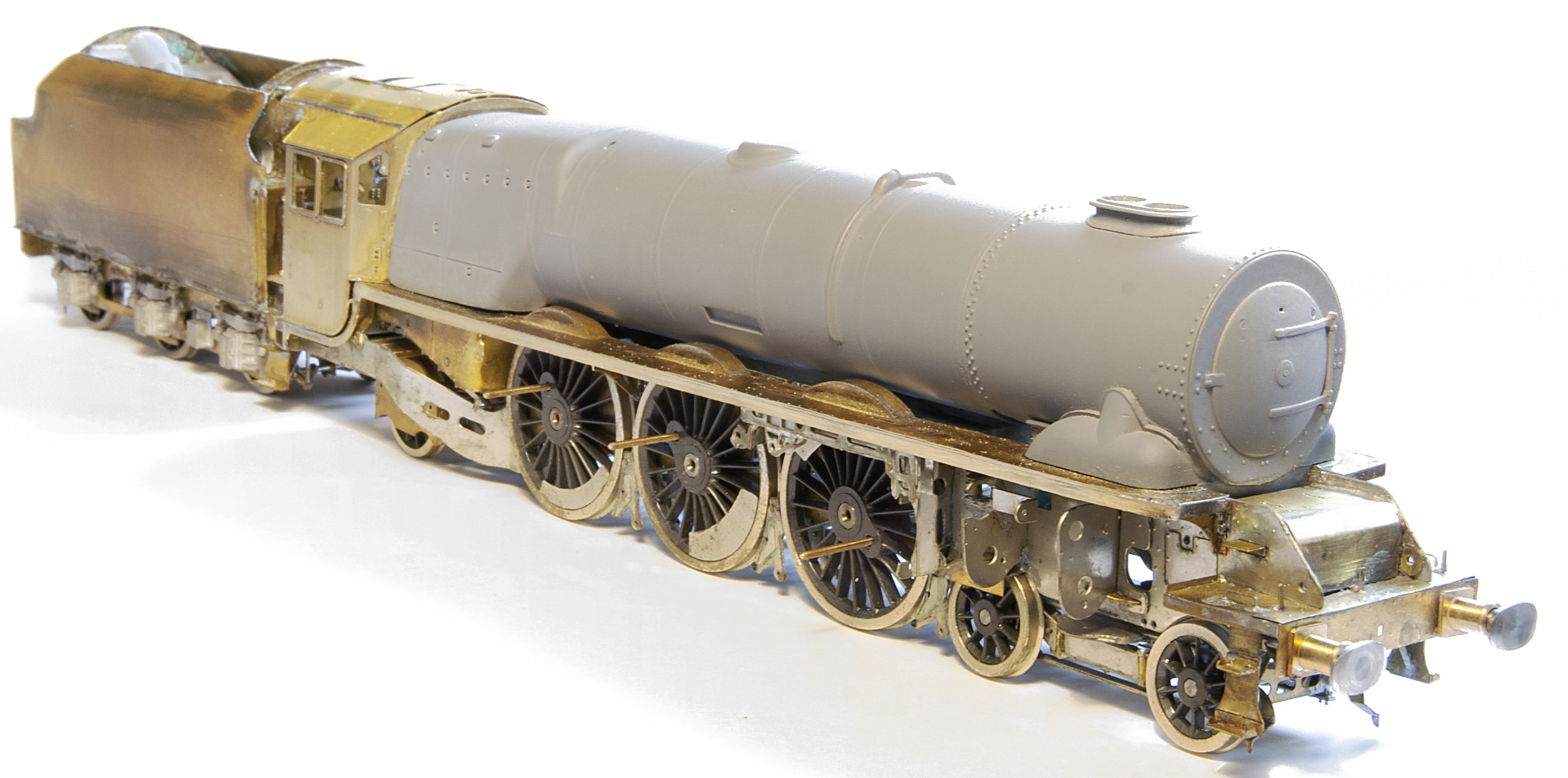

| The very first meeting of the footplate and the resin! | The resin in place on the chassis | A taster of how the finished model would look | |
|
We then decided to take advantage of the advances in 3D printing technology to produce really fine detail components instead of the traditional lost wax and whitemetal castings. We asked our colleague David Barham to push the technology as far as possible and even he has been surprised by how far we could take this. The backhead has an incredible level of detail and David has even managed to add in the pipework on the ejector and injectors. |
|||
 |
 |
 |
|

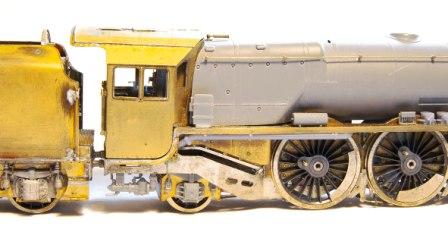

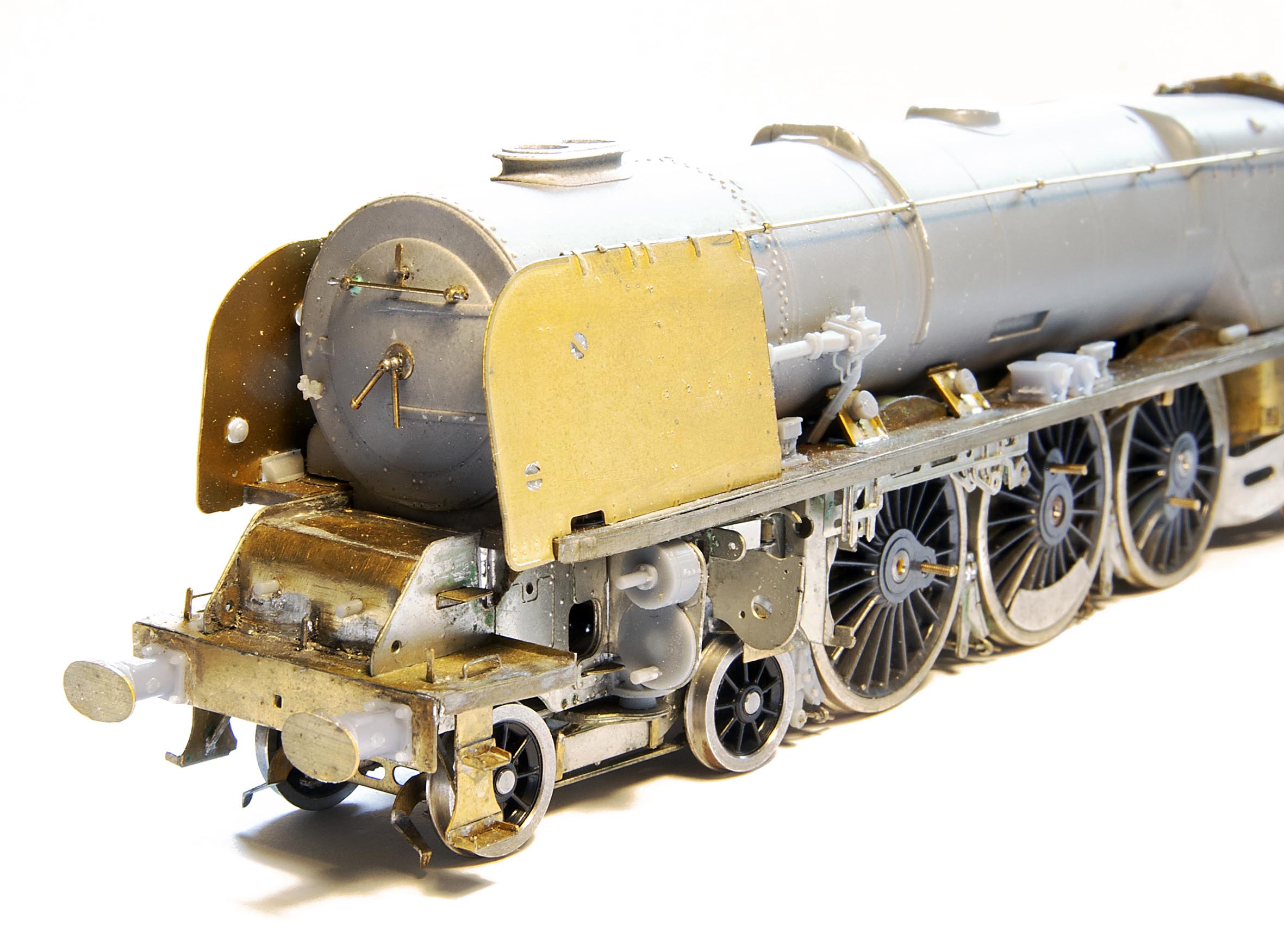

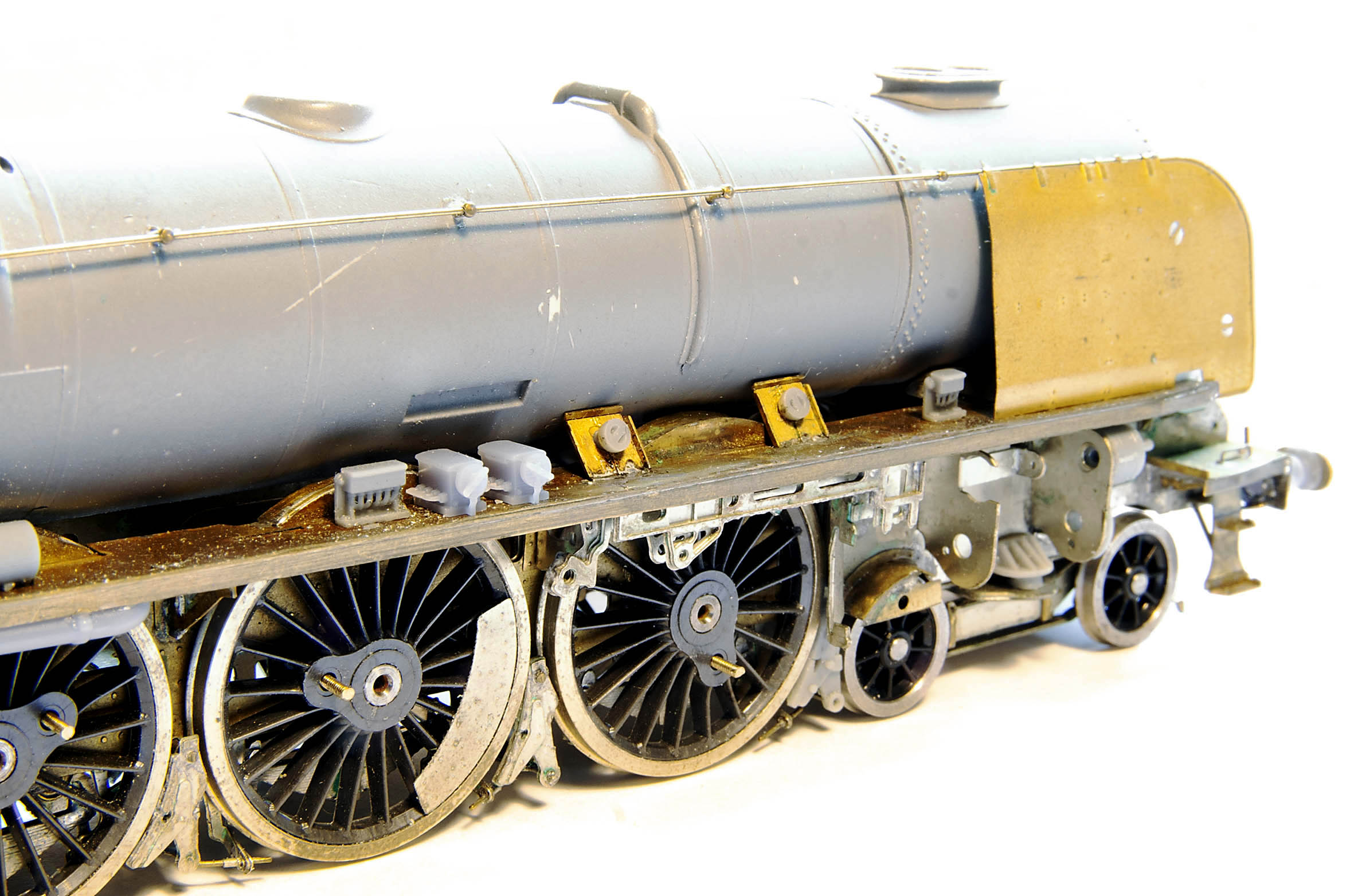

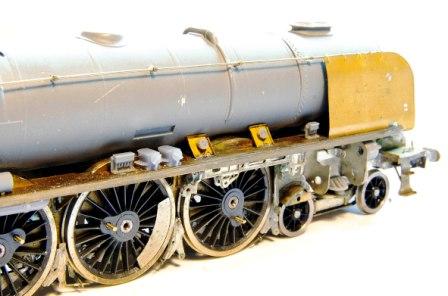

| Exhaust steam injector and pipe | Footplate detail with lubricators etc | Front end detail - buffers, cylinder fronts and brake blocks | |
 |
 |
 |
|

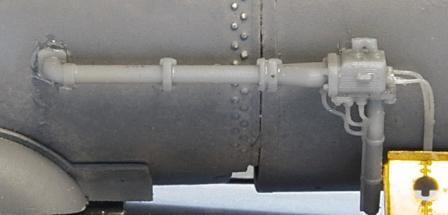

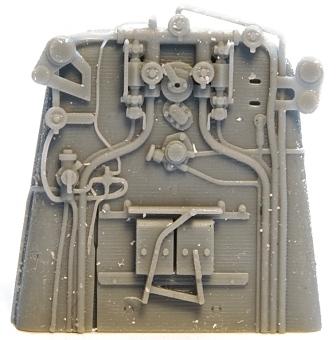

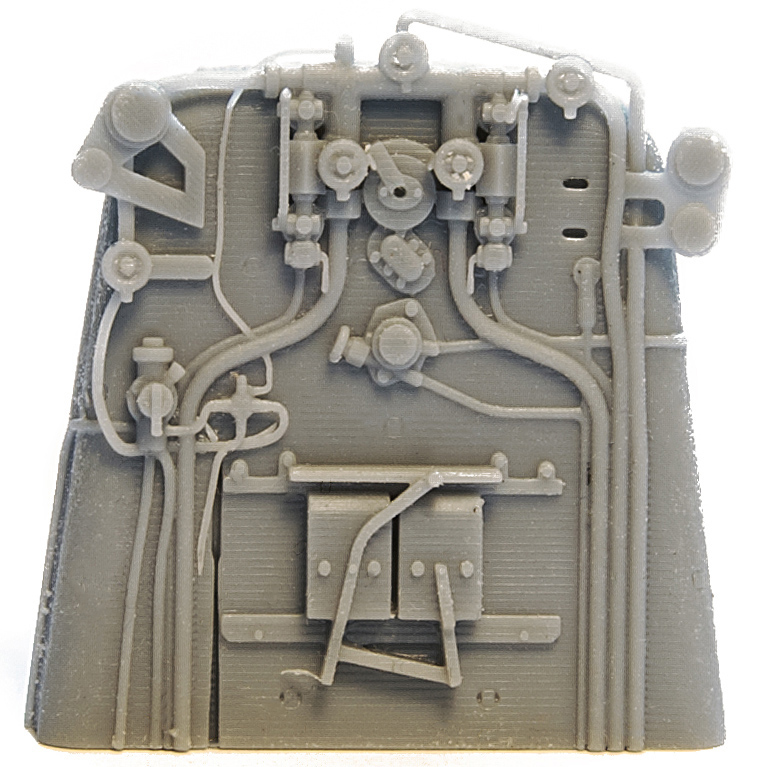

| The backhead | Coal pusher | Ejector with pipework | |
 |
 |
 |
|

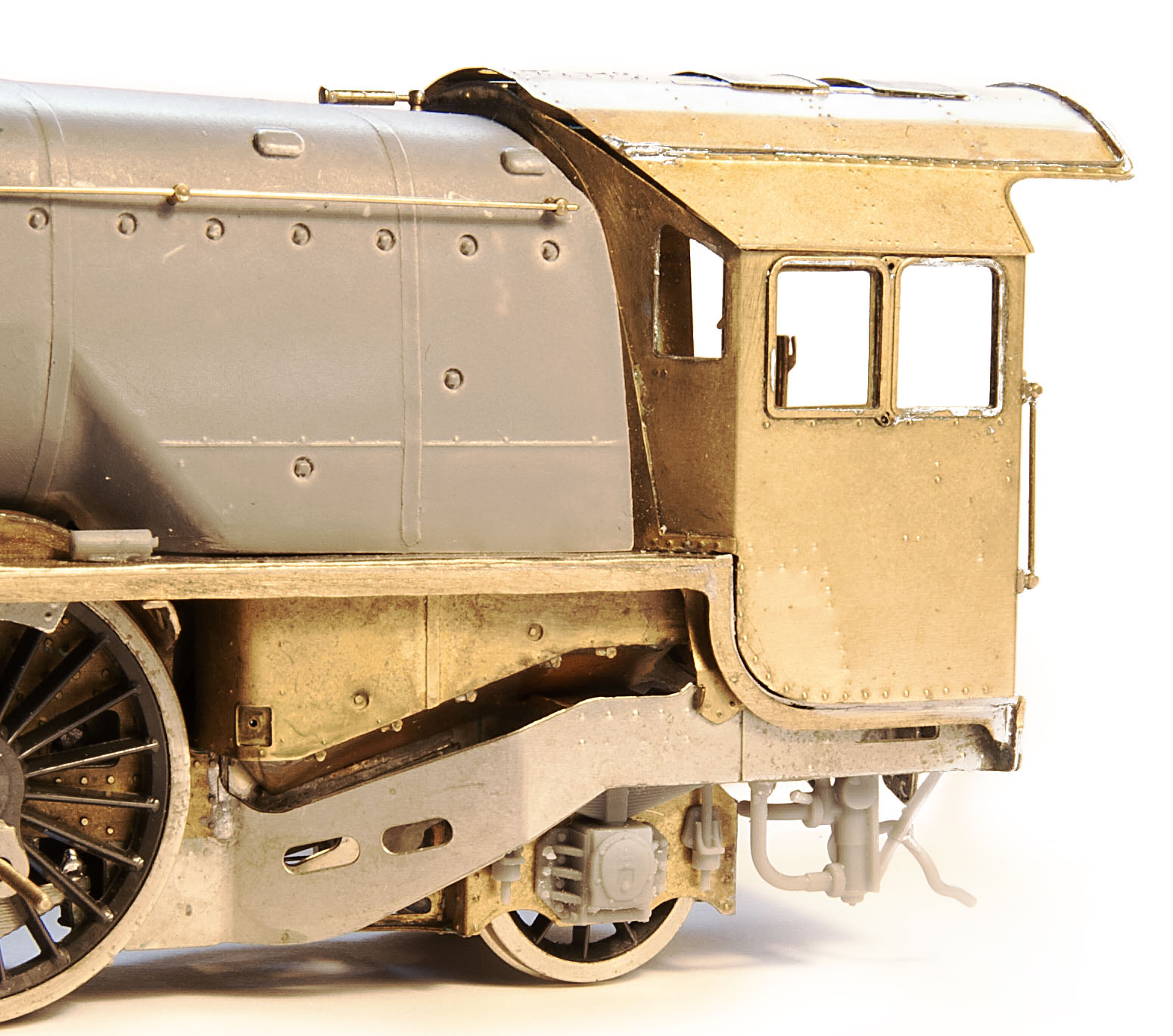

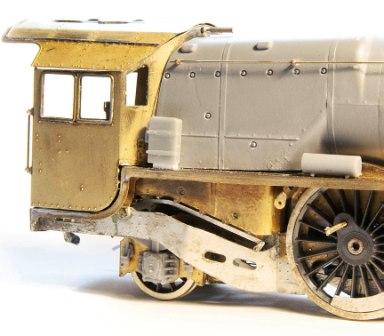

| AWS battery box and large cylinder | Cab backead and reverser | Bogie castings and ejector fitted in plcve | |
 |
 |
||

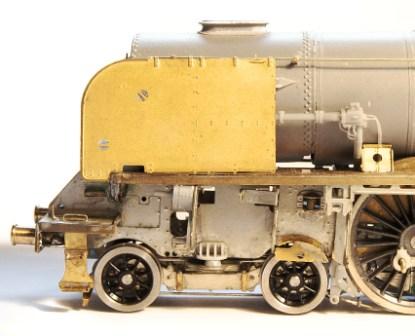

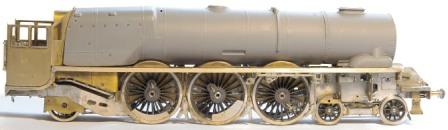

| Injector and pony truck axlebox/spring | Left hand side with some of the early components fitted | ||
|
Click the pictures to view full size |
|||
