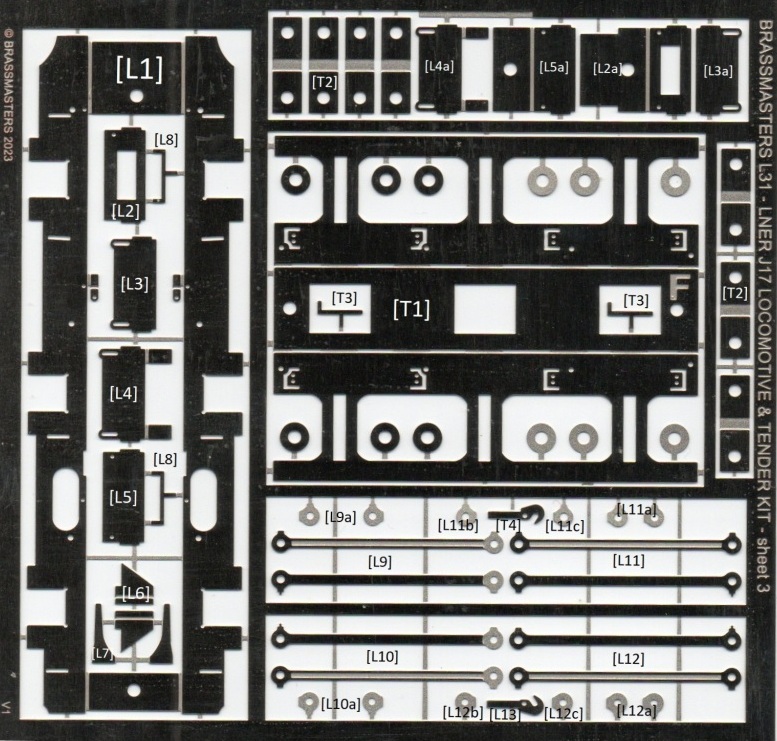

Part No.

Description

L1

Locomotive main-frames

L2

Rear frame spacer

L3

Middle/rear frame spacer

L4

Middle/front frame spacer

L5

Front frame spacer

L2a-L5a

as above but for narrower frames

L6

Frame brackets

L7

Guard irons

L8

Regulator handle

L9-L12

Coupling Rods

L9a-L12a

Bosses for end of Coupling rods



T1

Tender chassis (functional)

T2

Tender axle bearings

T3

Tender Brake standard handle

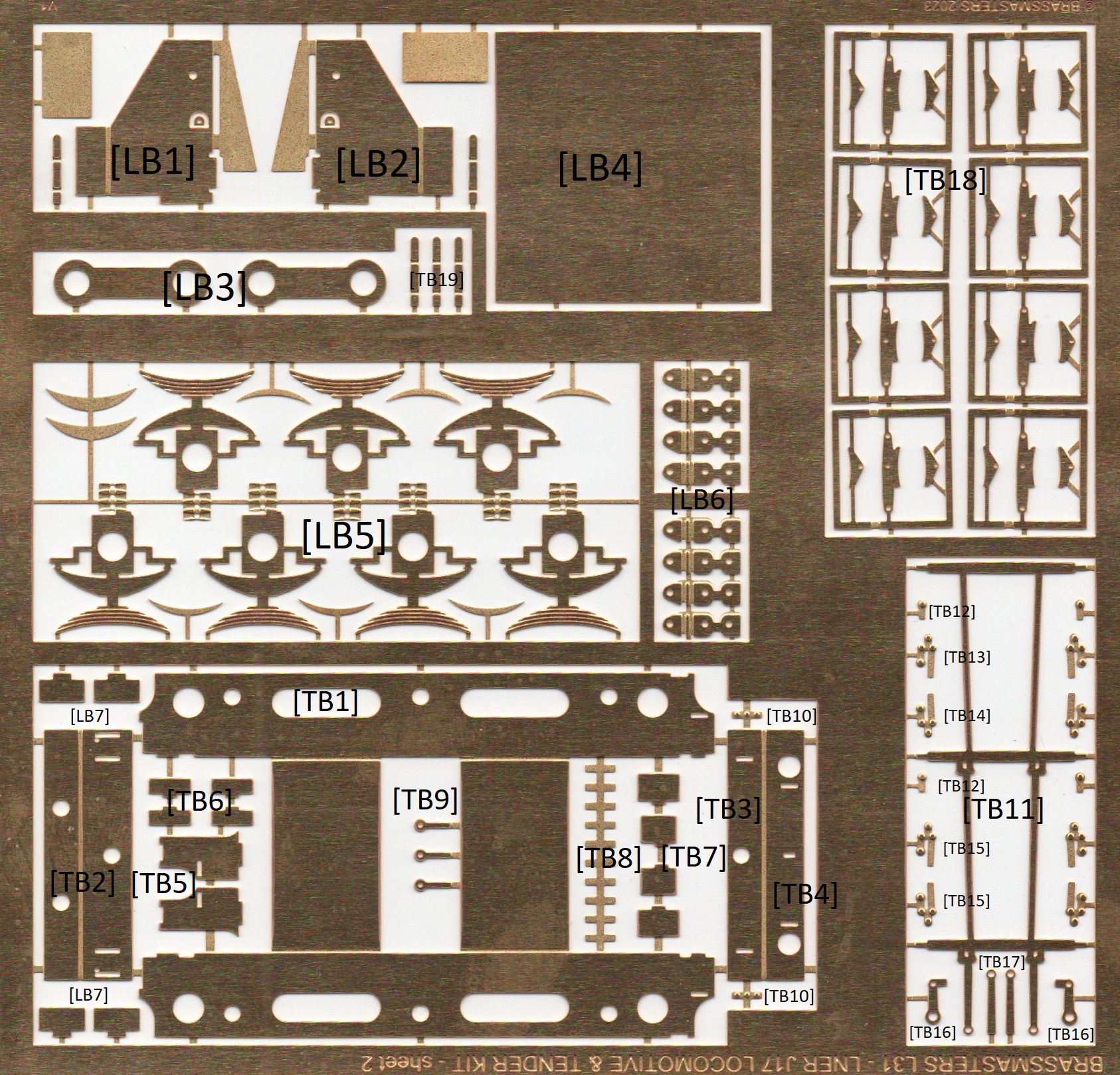

Part No. Description   Part No. Description
LB1 Firebox side (LHS)   TB6 Tender front footsteps treads
LB2 Firebox side (RHS)   TB7 Tender rear footsteps treads
LB3 Loco-tender coupling   TB8 Tender footstep detail
LB4 Cab Roof   TB9 Tender front handrail bracket
LB5 Spring/bearings   TB10 Tender guard iron detail
LB6 Locomotive brake carriers   TB11 Tender brake pull rods
LB17 Locomotive footsteps   TB12 Tender Pull rod overlay (rear)
LB39 Alternative fronts for splashers   TB13 Tender Pull rod overlay (middle)
      TB14 Tender Pull rod overlay (middle)
TB1 Tender chassis cosmetic outside frames   TB15 Tender Pull rod overlay (front)
TB2 Tender front beam and footplate   TB16 Tender brake linkage
TB3 Tender rear footplate   TB17
TB4 Tender rear bufferbeam   TB18 Tender brakes
TB5 Tender front footsteps

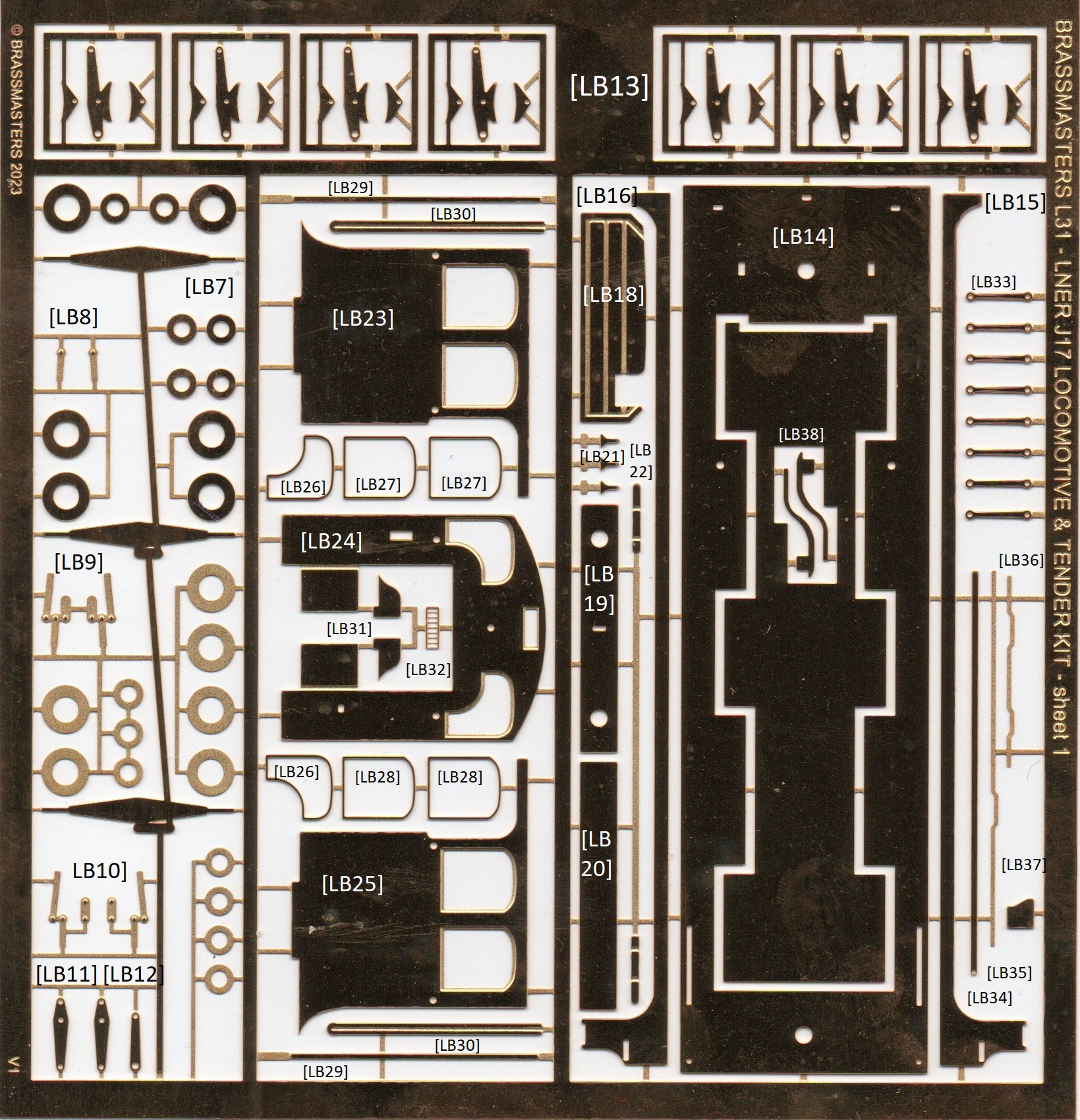

Part No. Description   Part No. Description
LB7 Locomotive brake pull rods   LB24 Cab front
LB8 Loco Pull rod overlay (front)   LB25 Cab side (RHS)
LB9 Loco Pull rod overlay (middle)   LB26 Cab window surround
LB10 Loco Pull rod overlay (rear)   LB27 Cab window surround (LHS)
LB11 Brake pull lever   LB28 Cab window surround (RHS)
LB12 Brake pull lever (vacuum fitted)   LB29 Cab roof rain strip
LB13 Locomotive brakes   LB30 Cab valance
LB14 Locomotive footplate   LB31 Frame tops
LB15 Footplate valance (RHS)   LB32 Cab front grill
LB16 Footplate valance (LHS)   LB33 Sander linkages
LB18 Locomotive cab fall-plate   LB34 Cab valance
LB19 Locomotive front buffer beam   LB35 Reverser lever
LB20 Locomotive rear buffer beam   LB36 Sander pull rod (rear)
LB21 Locomotive front lower lamp irons   LB37 Sander pull rod (centre)
LB22 Locomotive front upper lamp irons   LB38 Ramsbottom safety valve levers
LB23 Cab side (LHS)
