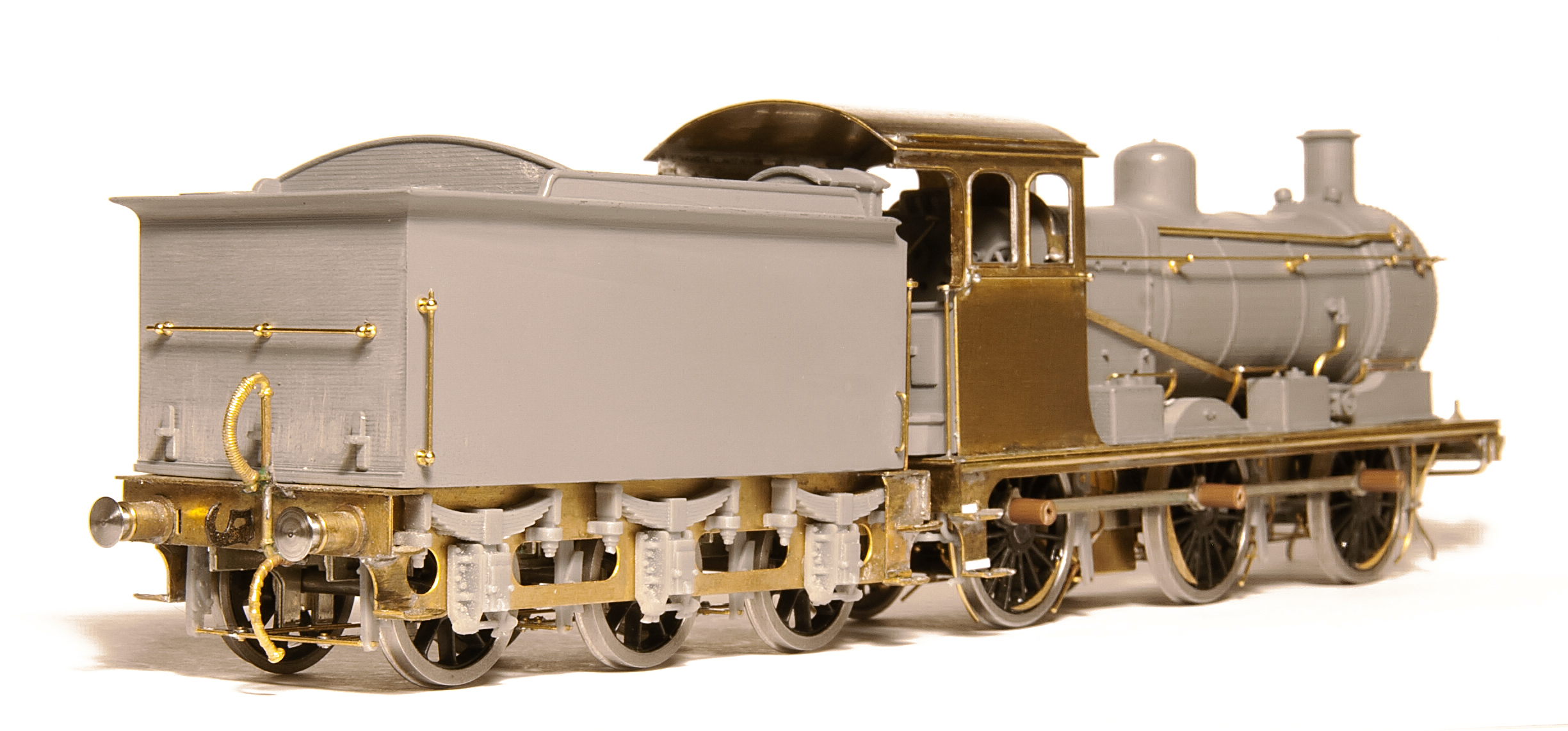

| Superheated vacuum braked model built by Jim Smith-Wright Click photos to zoom in | Click here for more photographs of the completed model, the test build and the component parts |
|
Initially we are producing three variants: (a) non-superheated with Ramsbottom safety valves rather than Ross pops, (b) superheated non-vacuum fitted, (c) superheated vacuum fitted. In preparation is (d) superheated non-vacuum fitted and flush riveted smokebox. The tender is common for all four. See below for drawings of each type. |
|
|
Ref |
Specification |
Price |
To complete |
|
|
L42
|
Etched nickel silver frames, motion and brass with resin superstructure for loco and tender Lost wax, whitemetal and turned fittings Flexichas suspension Non-working, ‘dummy’ inside motion Designed by David Barham |
£145 |
|
|
|
Wheels |
Driving: Alan Gibson 4S58 4'10" 16-spoke, Markits BR646xx |
|||
| Tender: Alan Gibson 4S47 3'11" 10-spoke | ||||
| Motor | Designed for a High Level 1219C HLPower Coreless motor | |||
| Gearbox | High Level Load Hauler Plus, 68:1, 1.5mm worm bore,1/8" axle bore | |||

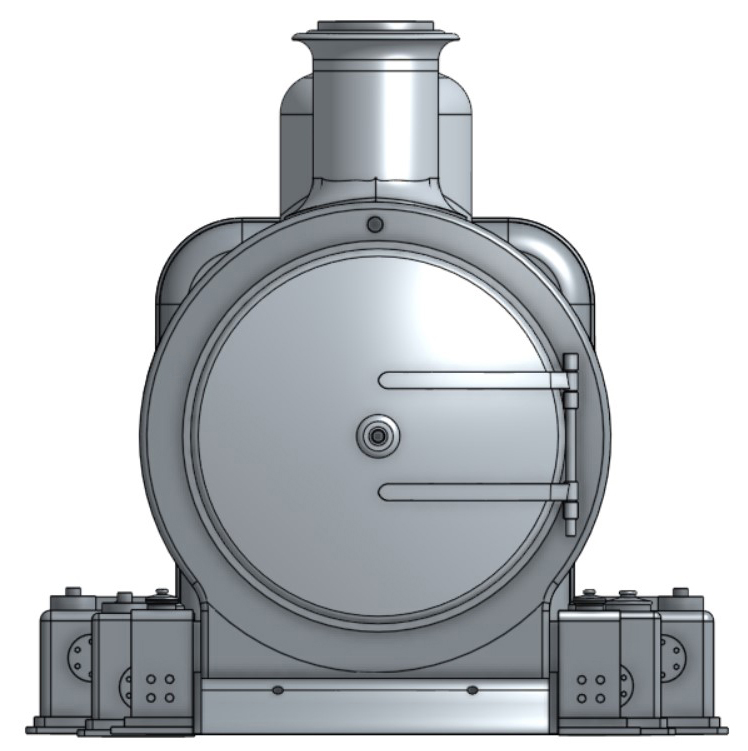

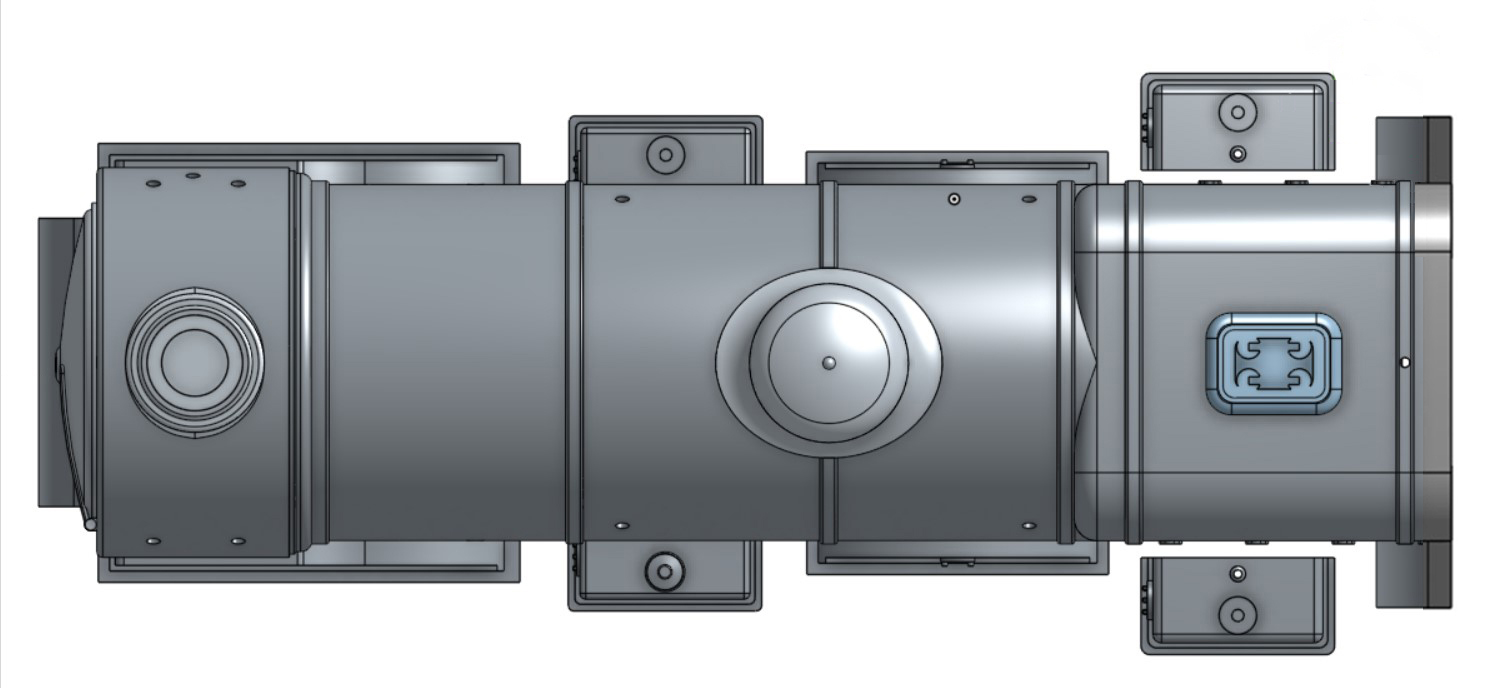

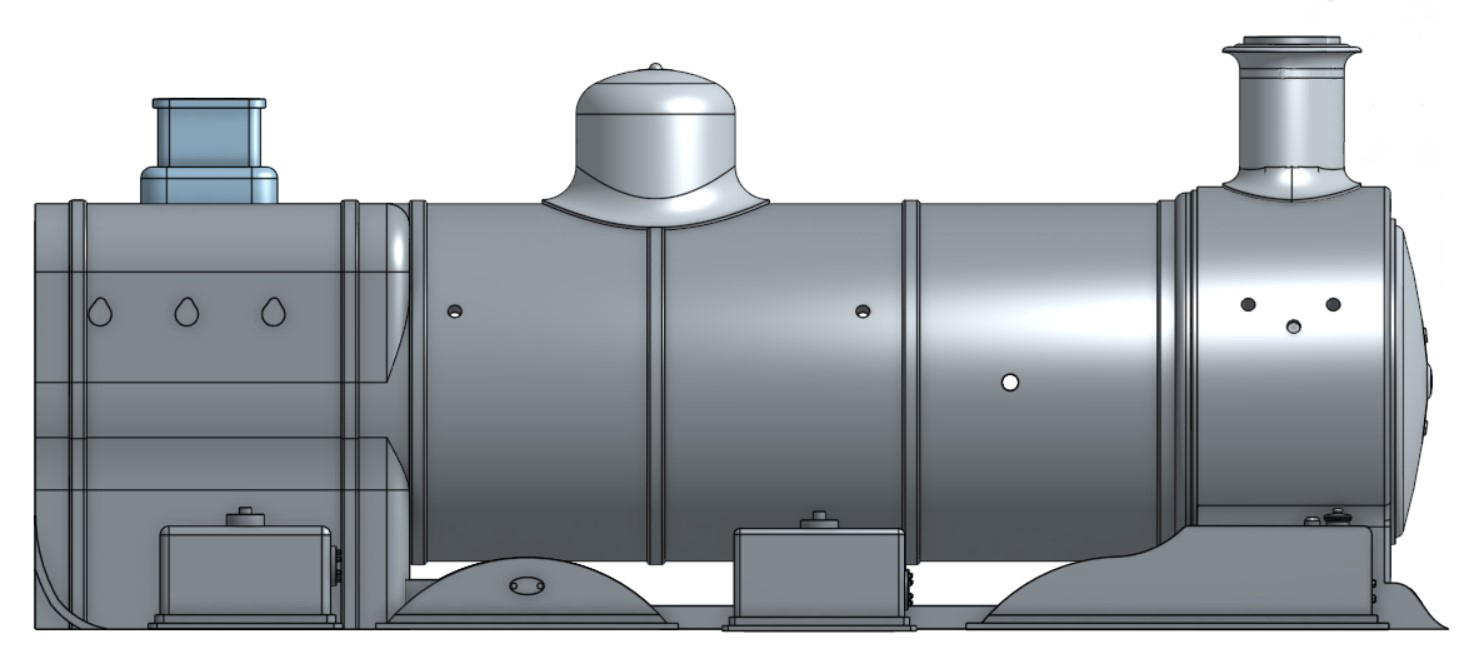

| (a) Non-superheated with Ramsbottom safety valves and with flush riveted smokebox |
 |
 |
 |
 |
 |
 |
|
| (b) Superheated non-vacuum fitted with Ross pop safety valves |
 |
 |
 |
 |
 |
 |
|

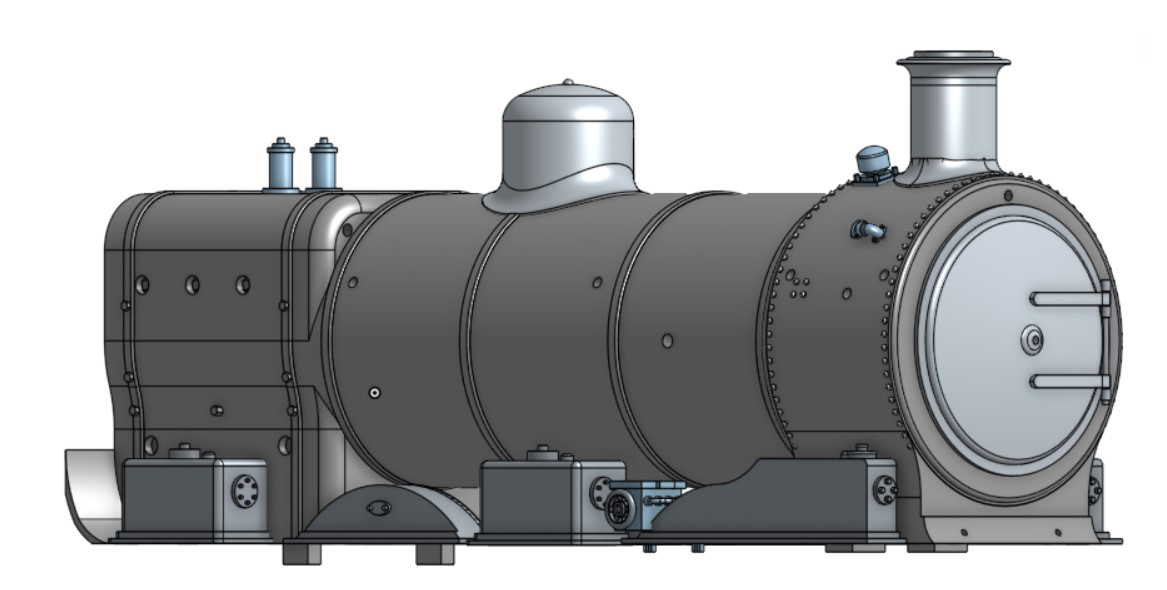

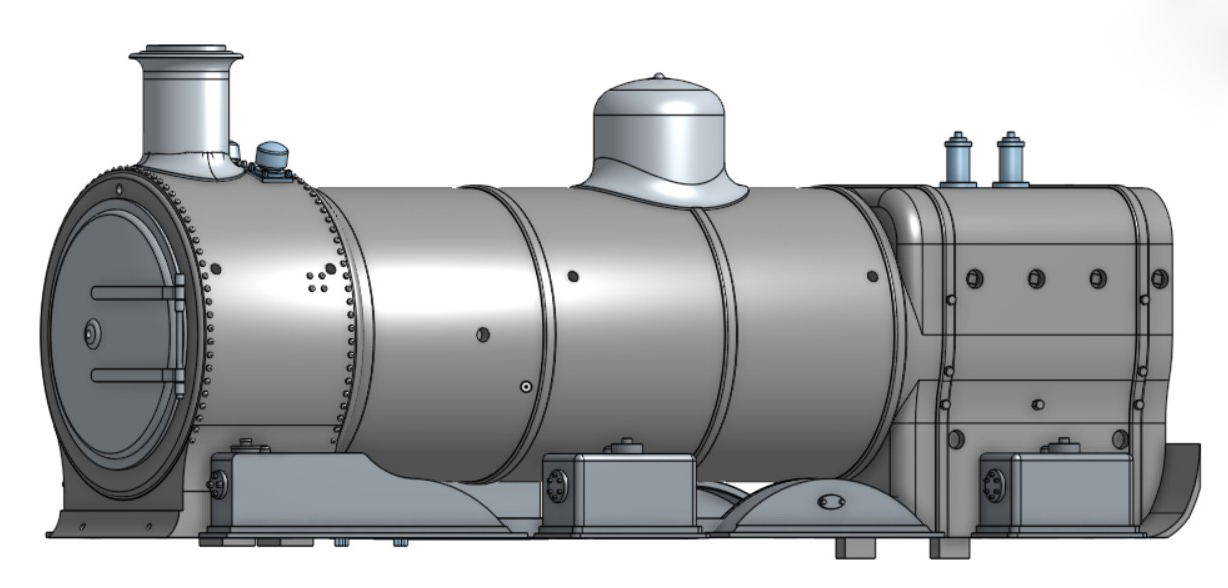

| (c) Superheated vacuum fitted with Ross pop safety valves |
 |
 |
 |
 |
 |
 |
|

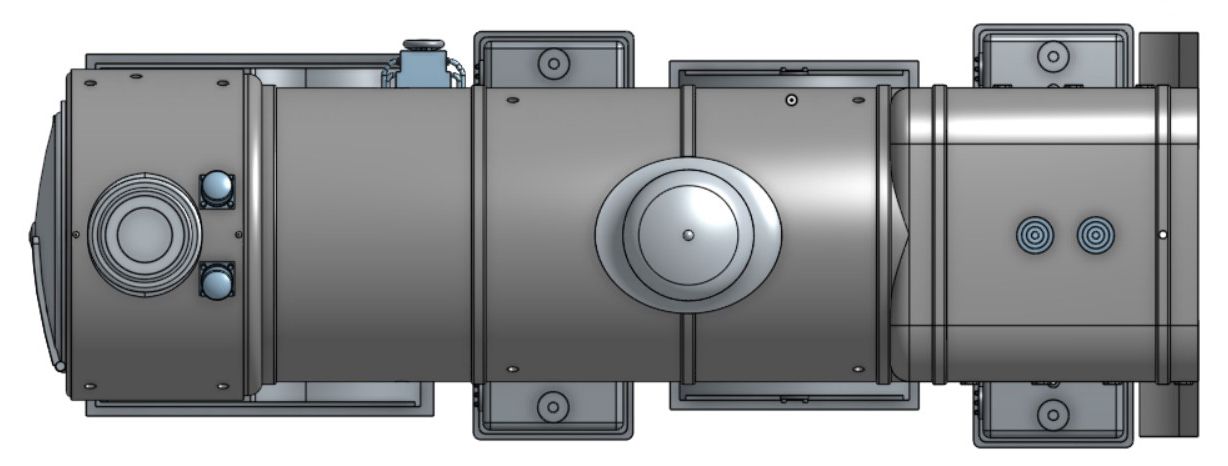

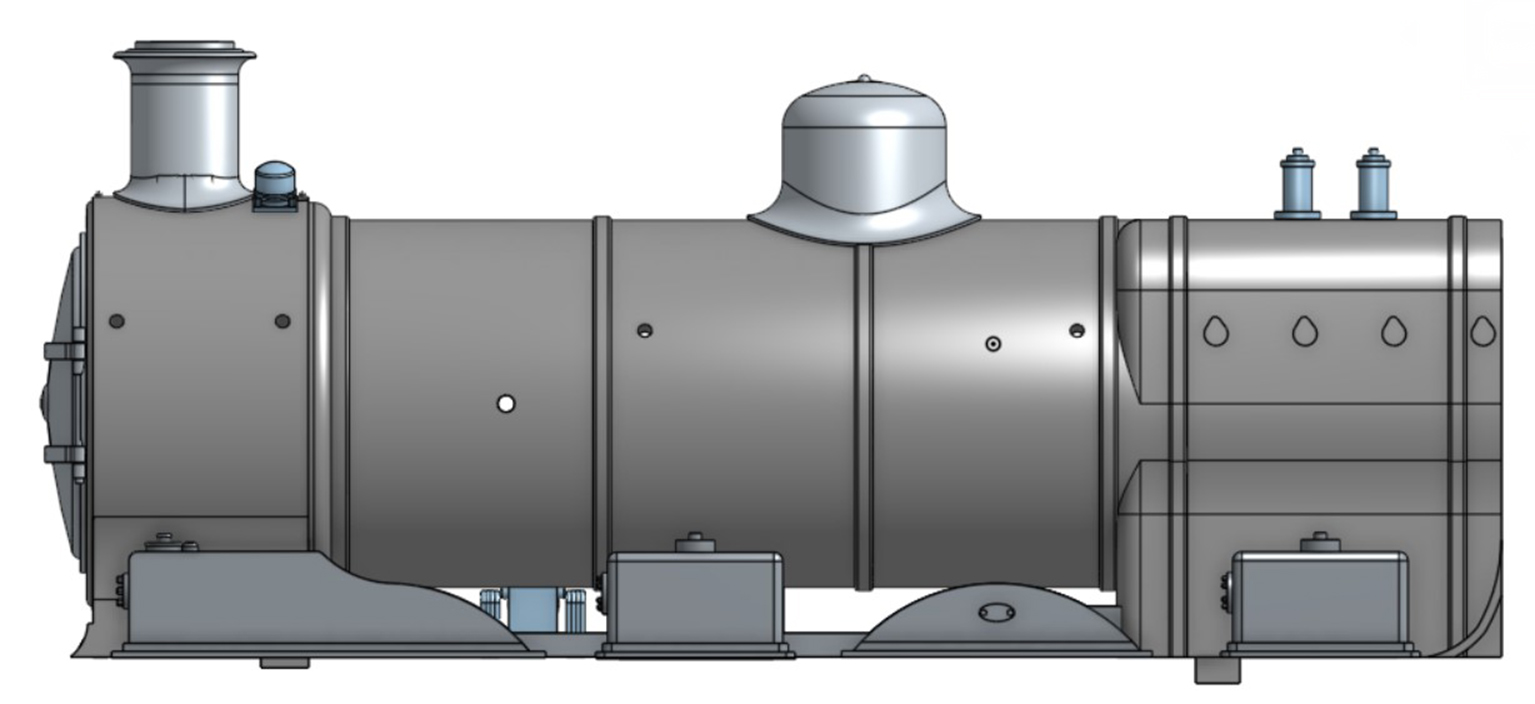

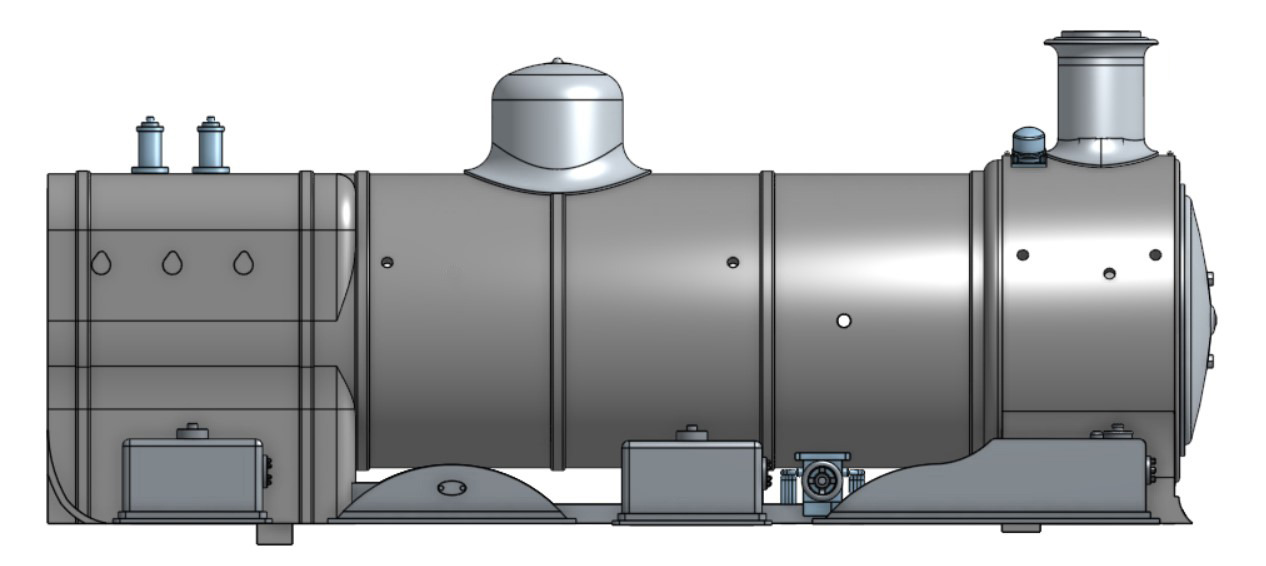

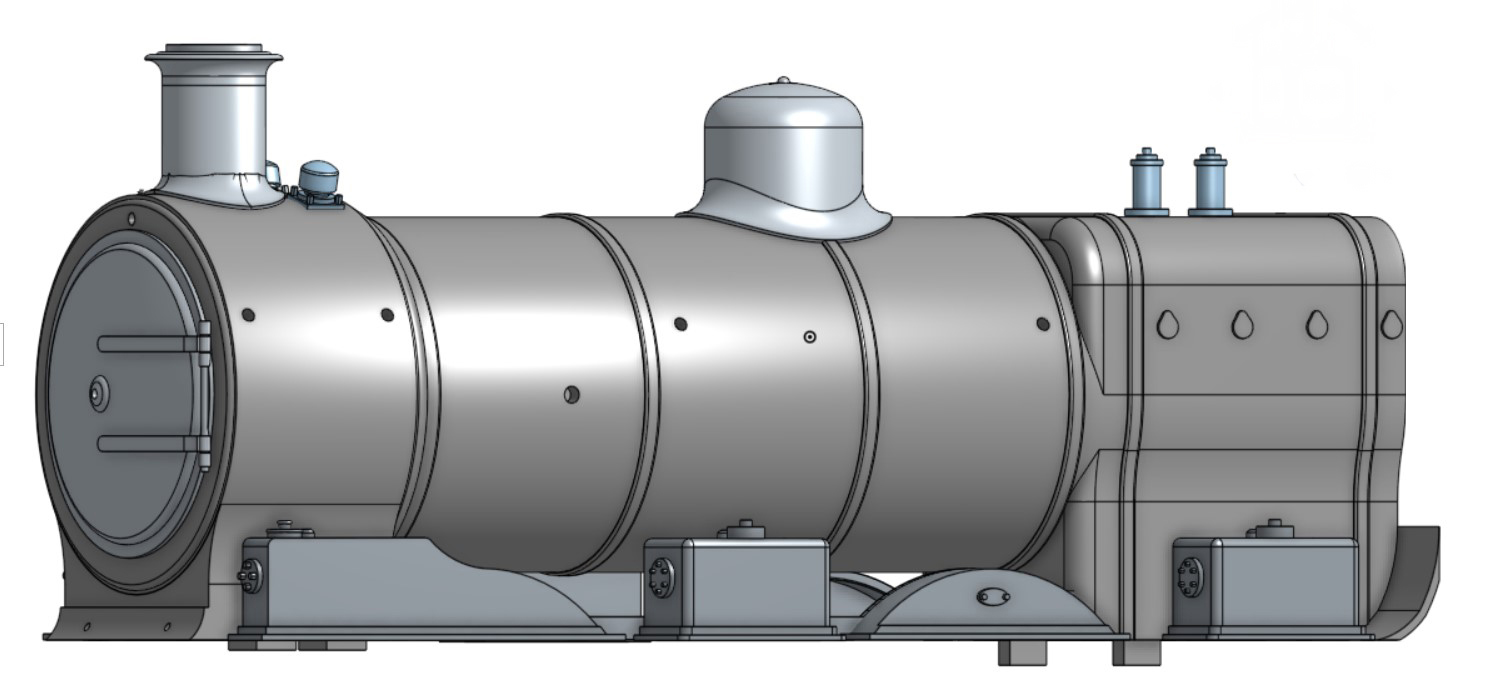

| (d) Superheated non-vacuum fitted with flush riveted smokebox |
 |
 |
 |
 |
 |
 |
|

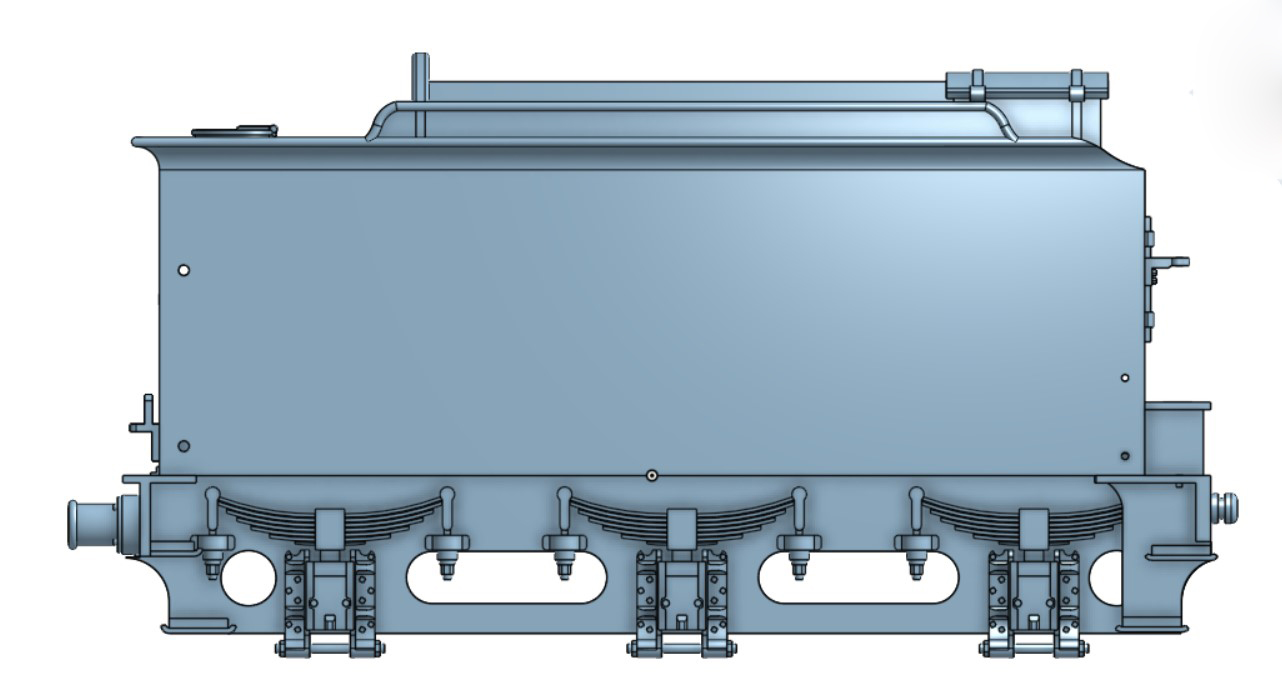

| Tender with coal rails and square coal space |
 |
 |
 |
 |
 |
 |
|
