Produced for us by Andy Vincent of Meon Valley Models, these are the best 4mm scale 3D-printed wagons that we have ever seen. They even have readable lettering on the axlebox covers!

The bodies have full interior detail and are designed to fit onto our etched brass sprung wagon underframes. The kits comprise body, floor, axleboxes and buffers, the second set being the buffer casting only to allow the builder to fit sprung buffer heads.

Alternative Gloucester 4N curved bottom axleboxes and buffers are available separately.

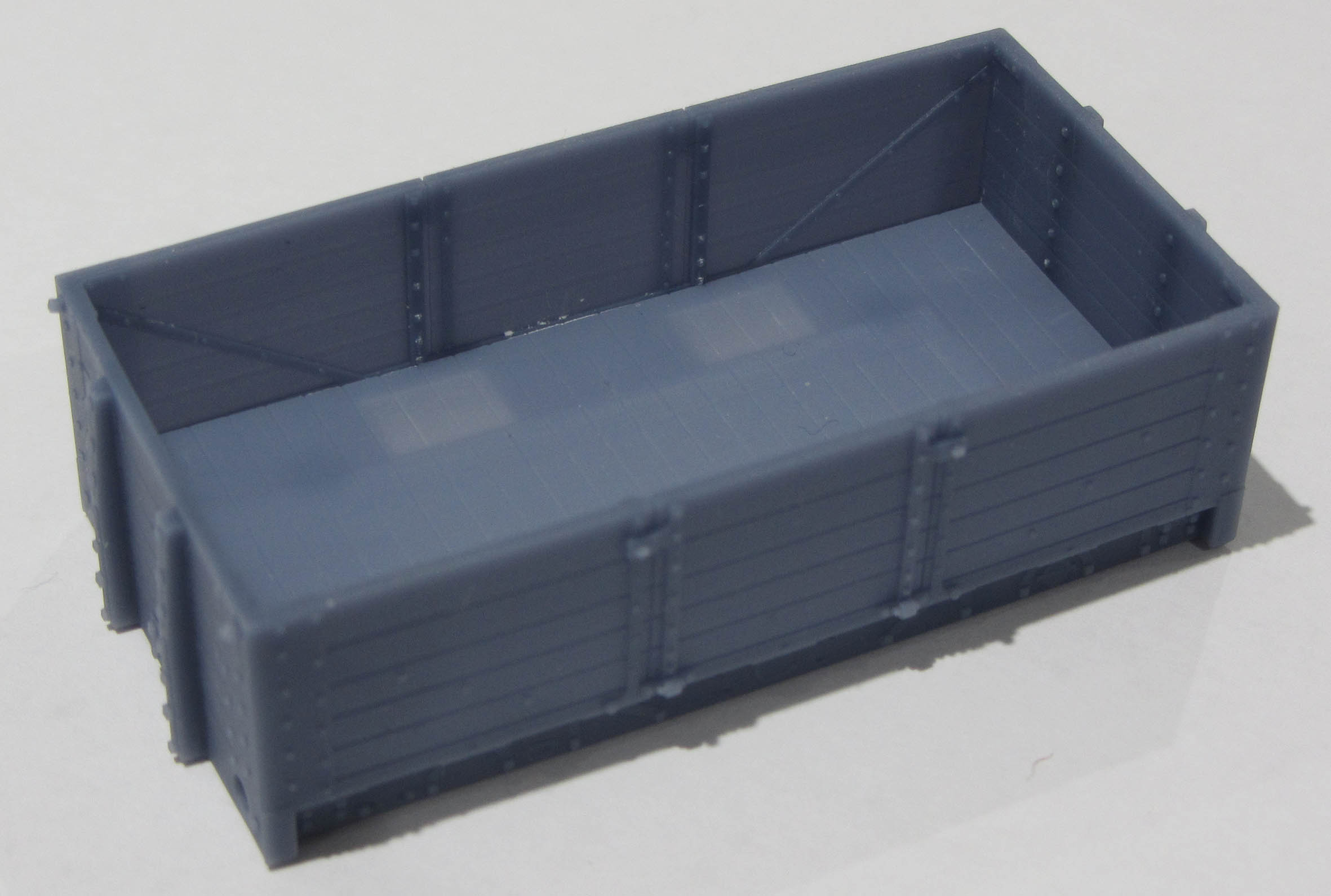

5-plank

6-plank

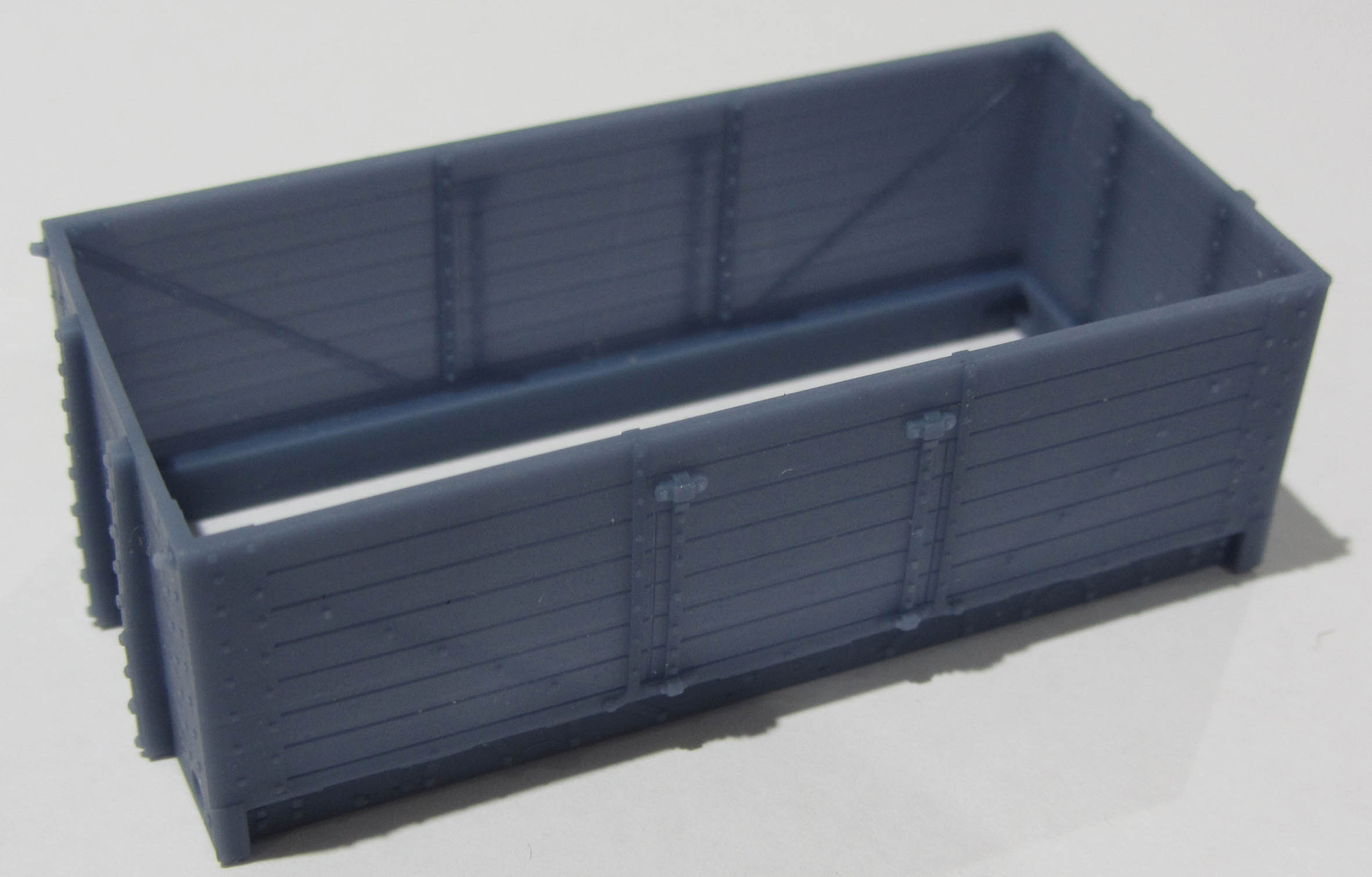

7-plank

Wheels (3ft 1½" split-spoke), coupling chain (3-link on the prototype) and paint/transfers are needed to complete the model.

Download the instructions.



 Click to enlarge pictures





Reference Maker Length Planks Strapping Doors   Price Underframe
MVW4000 Gloucester Railway Carriage & Wagon

15ft

5 Internal Side   £ 14 R042
MVW4002 Gloucester Railway Carriage & Wagon 15ft 6 Internal Side   £ 14 R042

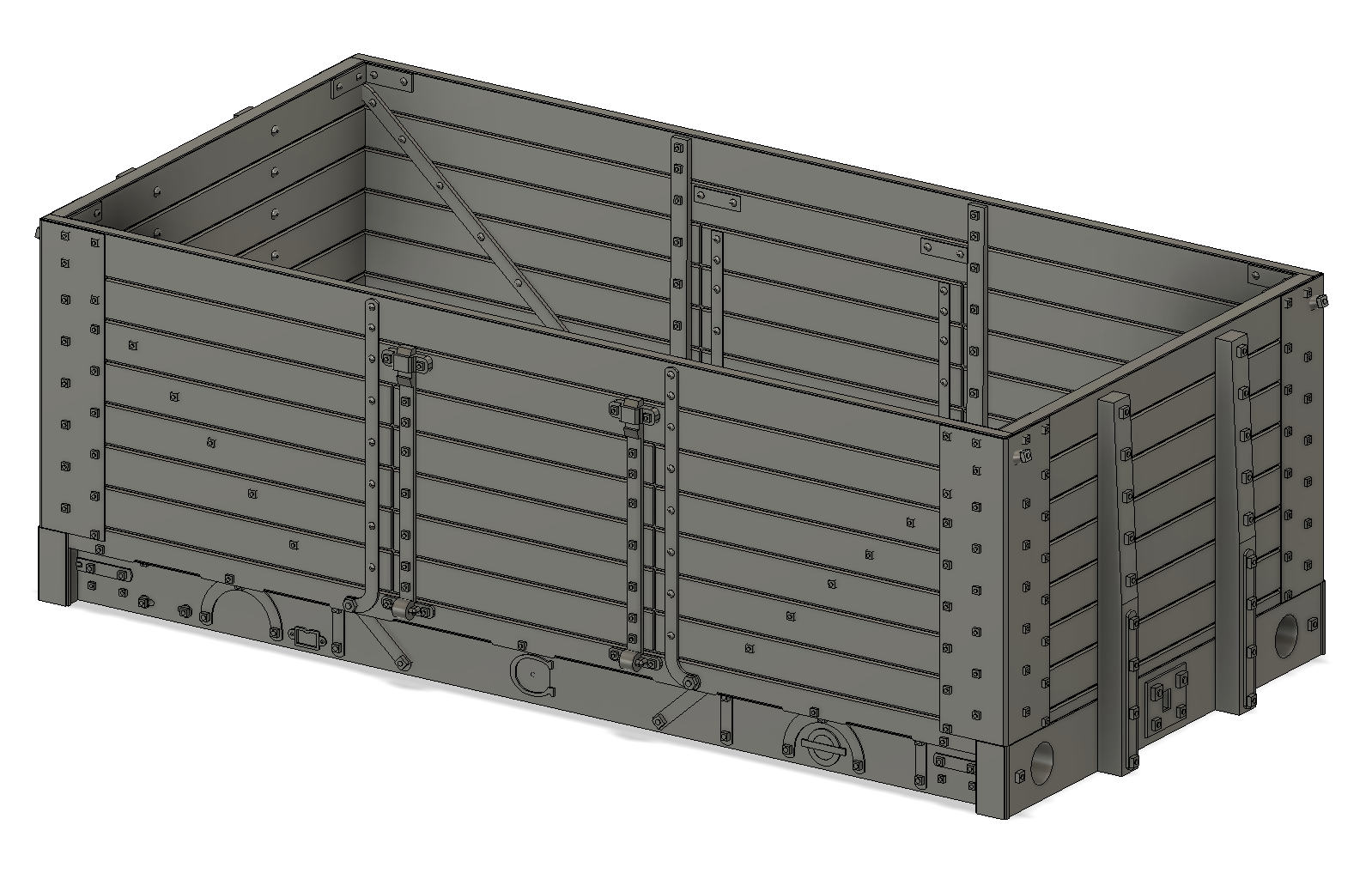

MVW4004 Gloucester Railway Carriage & Wagon 15ft 7 Internal Side   £ 14 R042
MVW4005 Gloucester Railway Carriage & Wagon 15ft 7 Internal Side and end   £ 14 R042
MVW4022 Gloucester Railway Carriage & Wagon 15ft 7 External Side   £ 14 R042

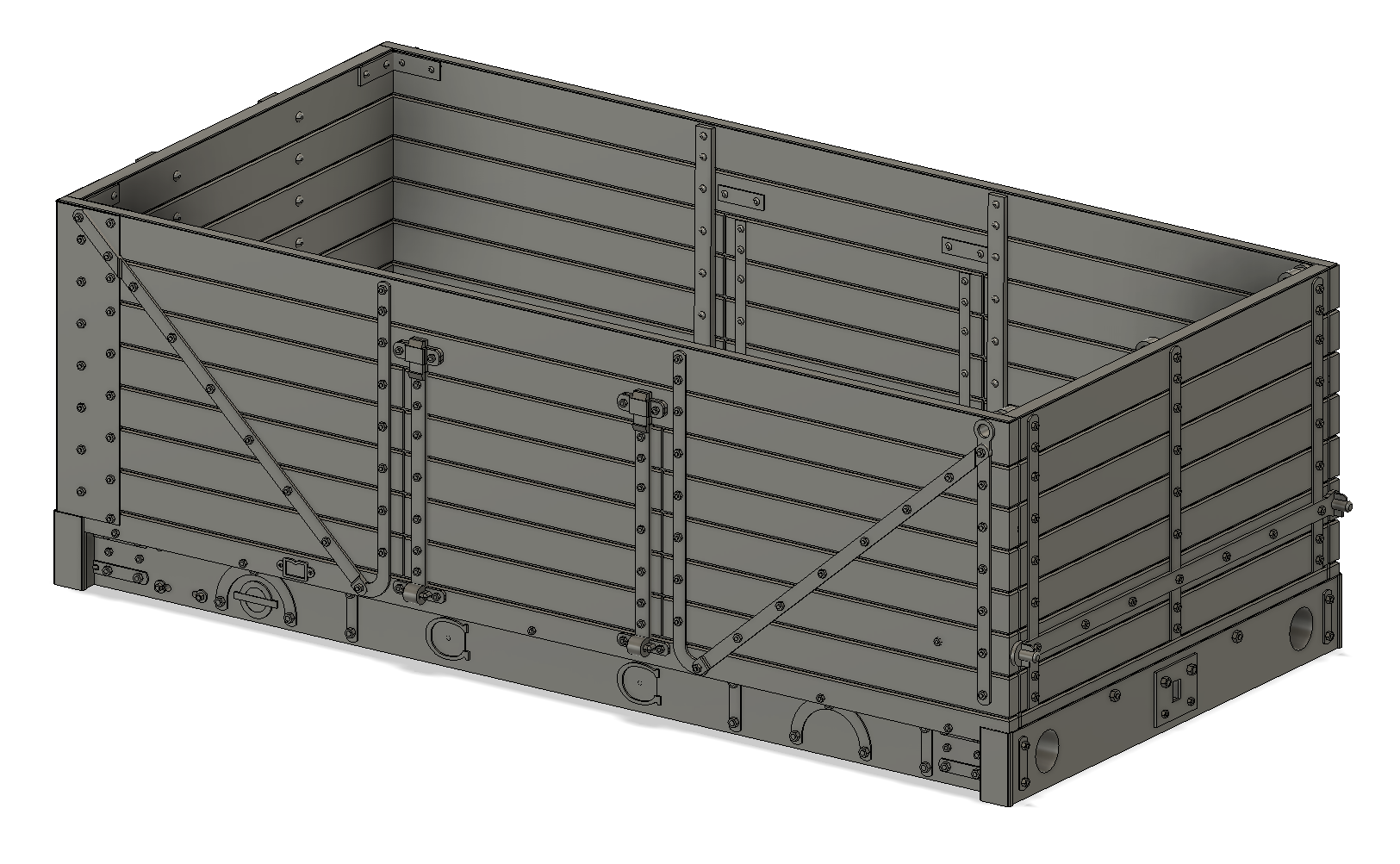

MVW4023 Gloucester Railway Carriage & Wagon 15ft 7 External Side and end   £ 14 R042

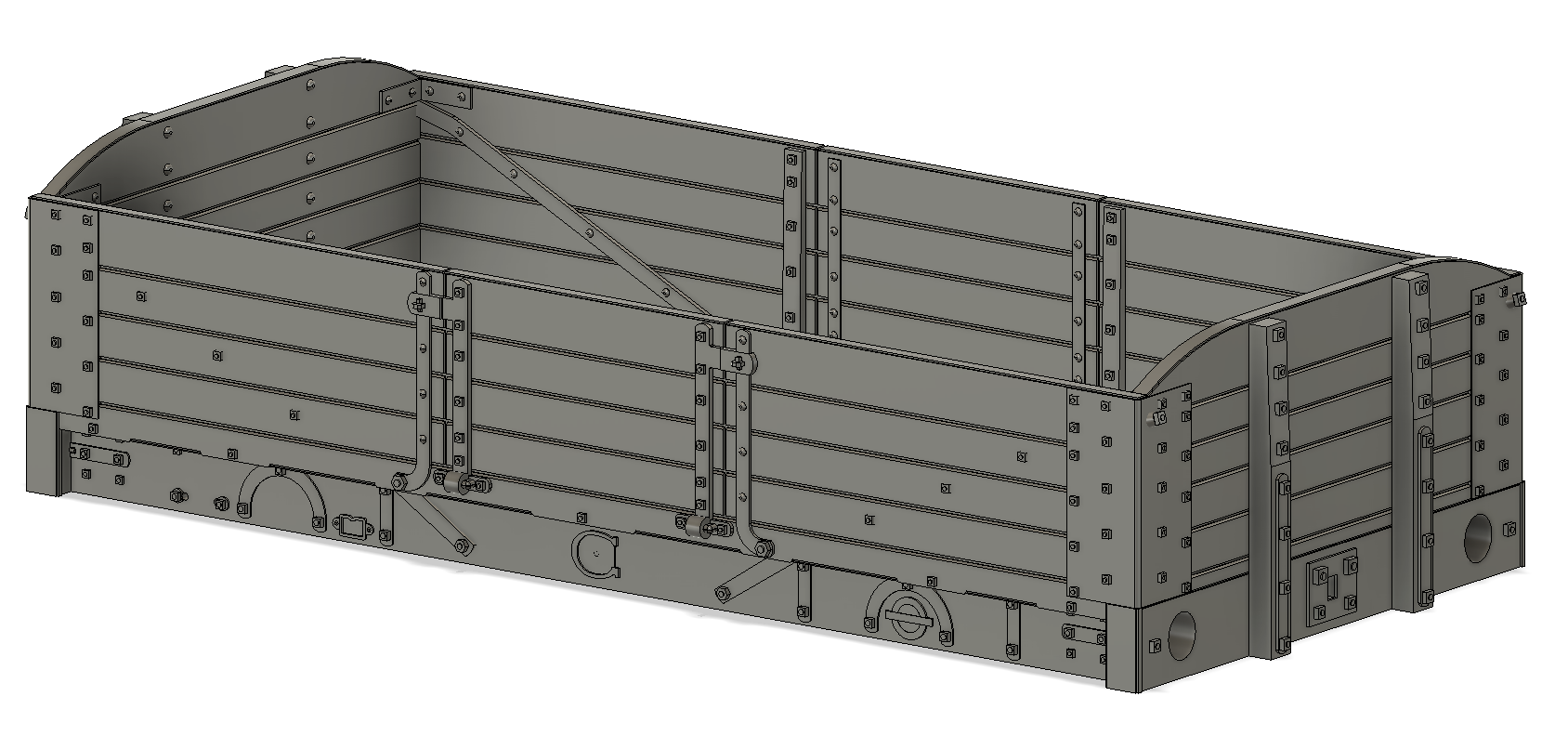

MVW4016 Gloucester Railway Carriage & Wagon 16ft 4 Internal Side Curved ends £ 14 R042
MVW4010 Gloucester Railway Carriage & Wagon 16ft 5 Internal Side   £ 14 R042
MVW4012 Gloucester Railway Carriage & Wagon 16ft 6 Internal Side Raised end £ 14 R042
MVW4014 Gloucester Railway Carriage & Wagon 16ft 7 Internal Side   £ 14 R042
MVW4015 Gloucester Railway Carriage & Wagon 16ft 7 Internal Side and end   £ 14 R042

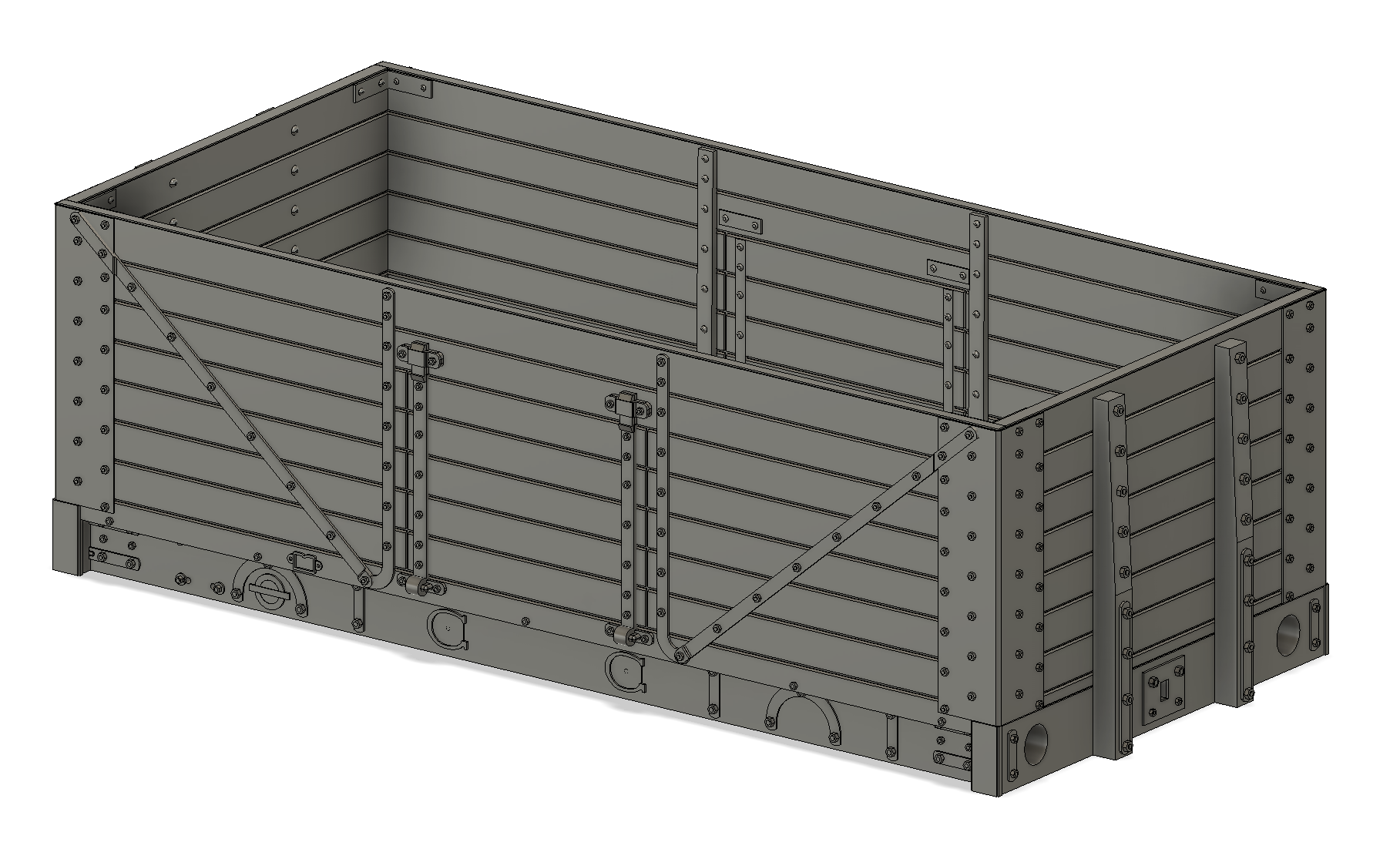

MVW4024 Gloucester Railway Carriage & Wagon 16ft 7 External Side   £ 14 R042
MVW4025 Gloucester Railway Carriage & Wagon 16ft 7 External Side and end   £ 14 R042

MVW4030 Gloucester Railway Carriage & Wagon 16ft 6in 7 External Side and end   £ 14 R042

MVW4050 Charles Roberts 1907 16ft 7 External Side and bottom   £ 14 R041
MVW4051 Charles Roberts 1907 16ft 7 External Side, end & bottom   £ 14 R041

MVW4080 RCH 1923 (wooden underframe and stanchions) 16ft 6in 7 External Side and bottom Top wide planks £ 14 R051
MVW4081 RCH 1923 (wooden underframe and stanchions) 16ft 6in 7 External Side, end & bottom Top wide planks £ 14 R051
MVW4084 RCH 1923 (wooden underframe and stanchions) 16ft 6in 8 External Side and bottom   £ 14 R051
MVW4085 RCH 1923 (wooden underframe and stanchions) 16ft 6in 8 External Side, end & bottom   £ 14 R051

MVW4451 MR dia D299 - early version 14ft 11in 5 Straps on end Side and bottom 7ft 5in wide £14 R041
MVW4452 MR dia D299 - later more common version 14ft 11in 5 No straps on sides/ends Side and bottom 7ft 5in wide £ 14 R041
MVW4454 MR dia D351 -  early version 14ft 11in 5 Straps on end Side, end & bottom 7ft 5in wide £14 R041
MVW4455 MR dia D351 - later more common version 14ft 11in 5 No straps on sides/ends Side, end & bottom 7ft 5in wide £ 14 R041

MWC4003B Gloucester 4N curved bottom axleboxes (set of 4) £ 3.50

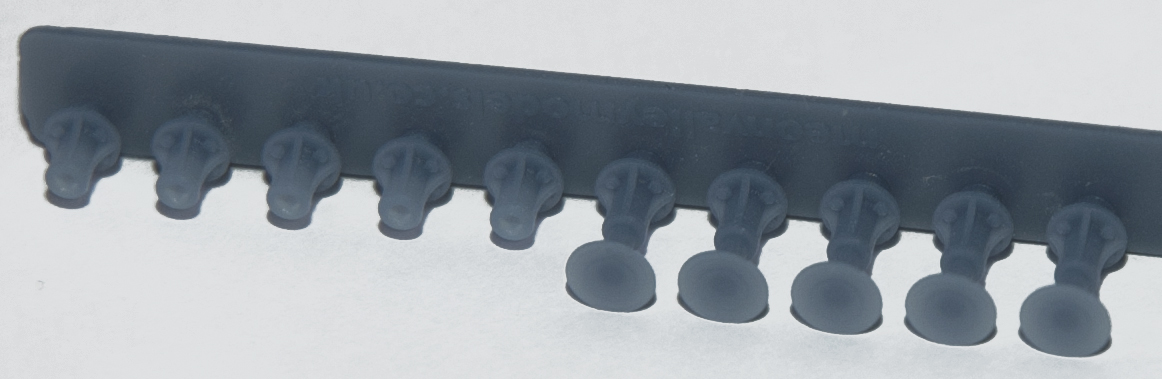

MVC4006B Gloucester 9½“plain buffers (5 with bufferheads and 5 with no heads) £ 3.50


Contents

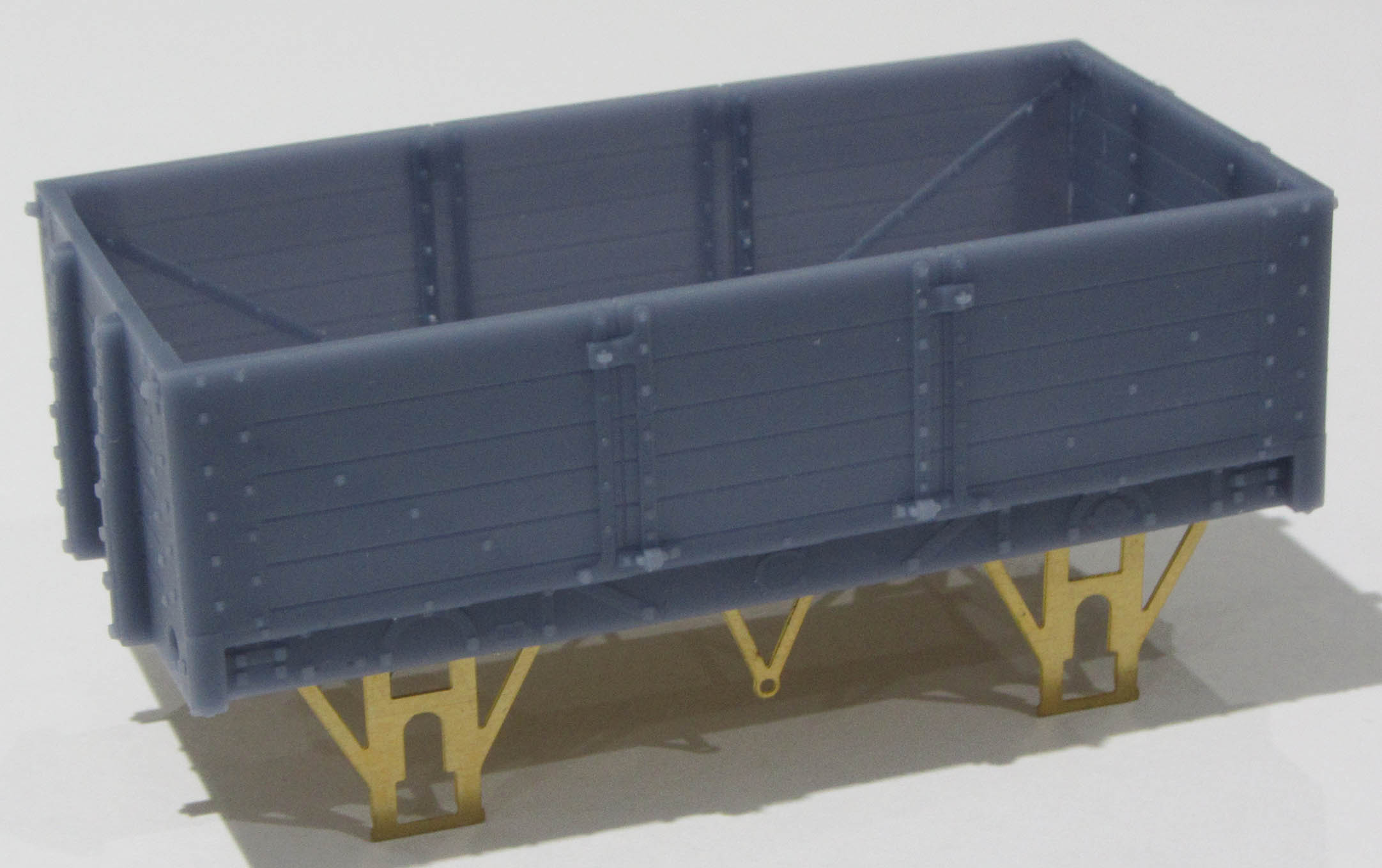

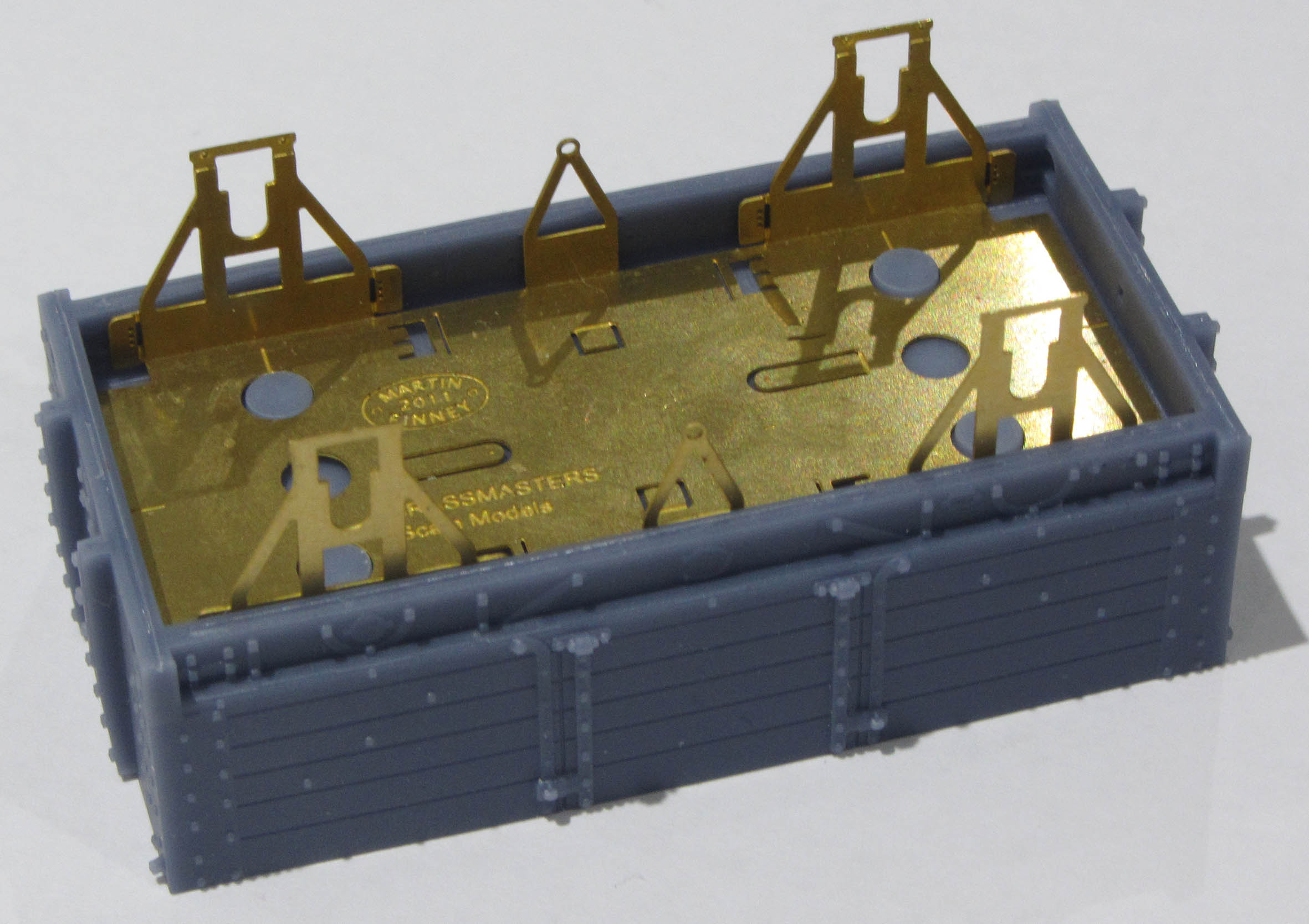

Mounted on Brassmasters R042 sub-frame

Sub-frame fitted
